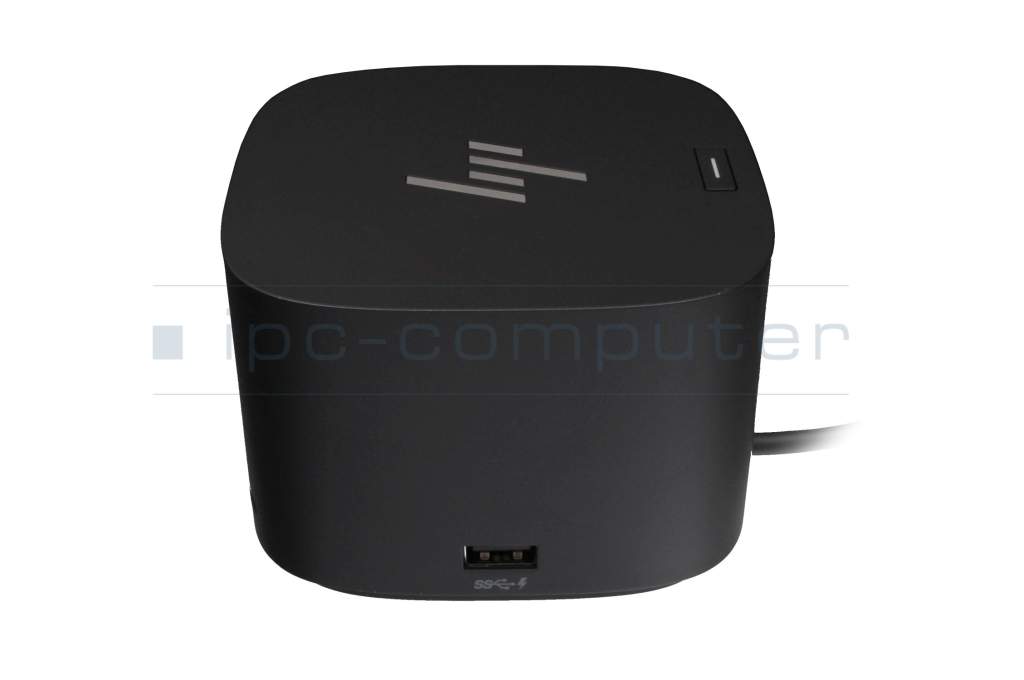

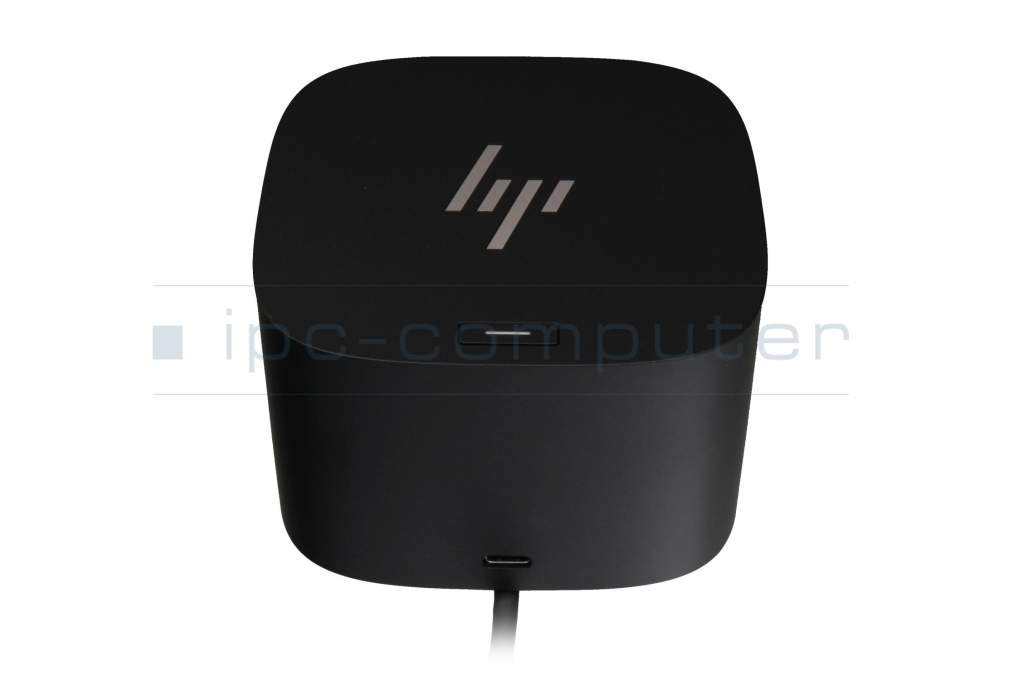

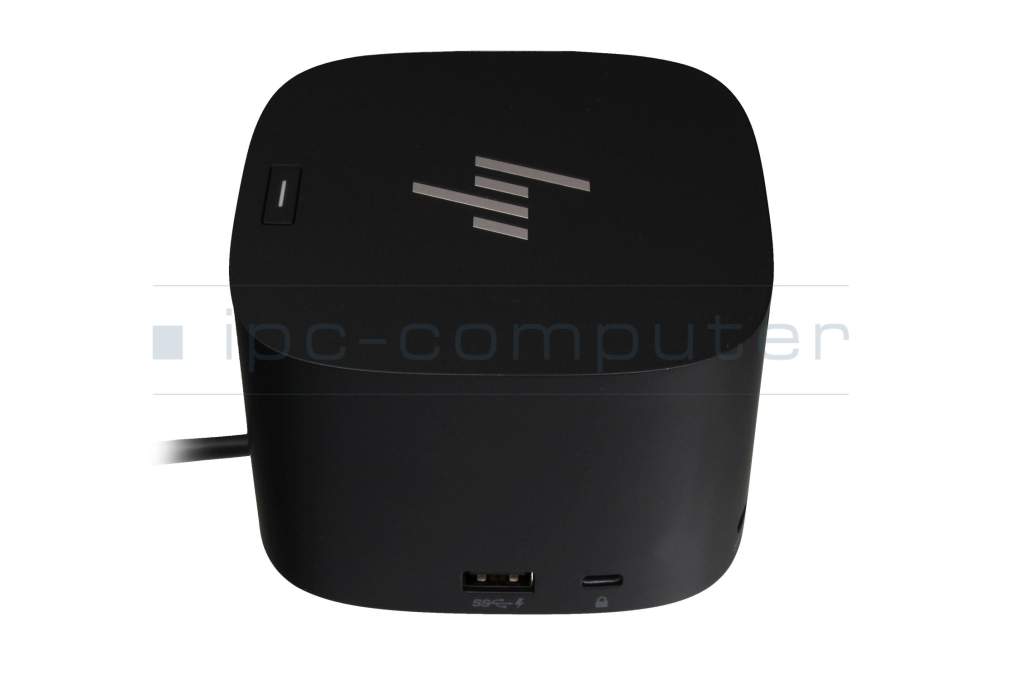

HP 4J0A2AA Thunderbolt Dockingstation G4 incl. 120W Netzteil
plus shipping charges
Substitute part numbers:
M88058-001, M84220-001, HSN-IX03
4J0G4AA HP Thunderbolt Dockingstation G4 incl. 280W ac-adapter
plus shipping charges
Product Info
- Manufacturer
- HP
- Item Number
- 4J0A2AA
- Sub-Partnumbers
- M88058-001, M84220-001, HSN-IX03
Common data
- Condition
- New
Technical Data
- Connexion to the laptop

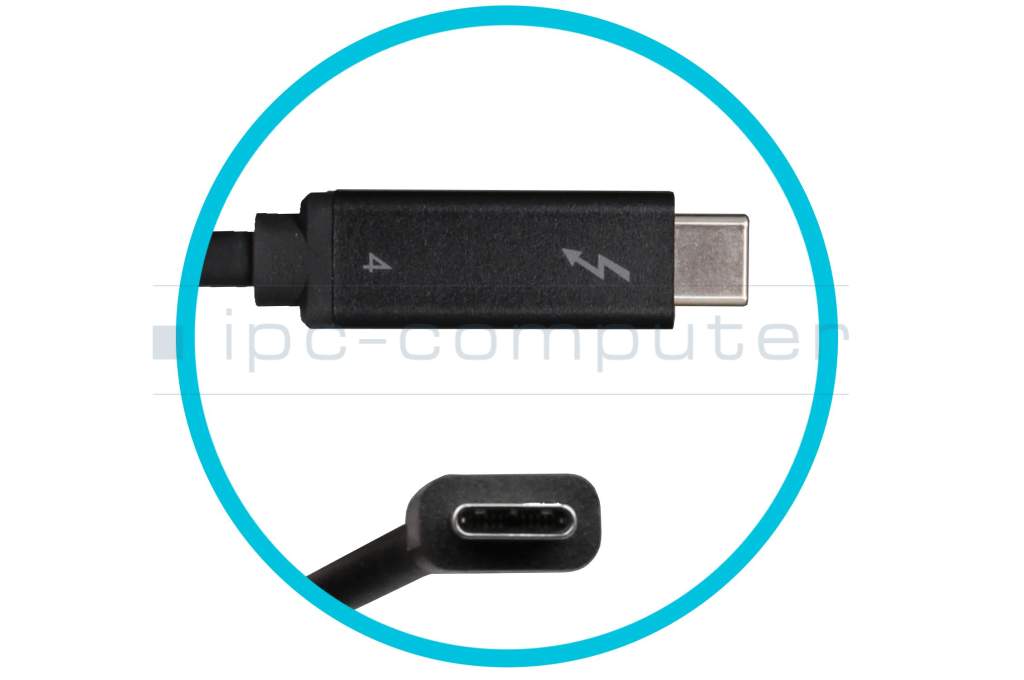

- Thunderbolt 4

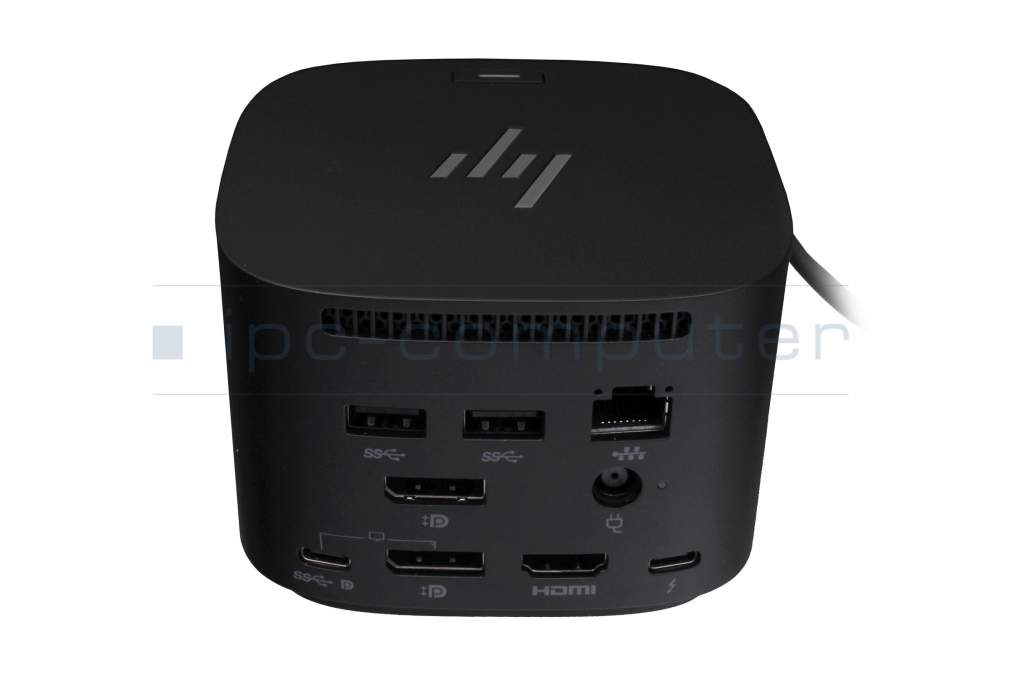

- Connectors
-
1x DC-In (Power supply)
1x Ethernet (RJ-45)
1x HDMI 2.0
1x Kensington-Lock
1x Thunderbolt 4
1x USB-C Alt Mode
1x host port
2x DisplayPort 1.4
4x USB-A 3.2 Gen 1 - Max. resolution of external monitors
-
1x 8K - 7680x4320 @ 60Hz

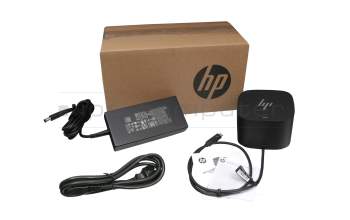

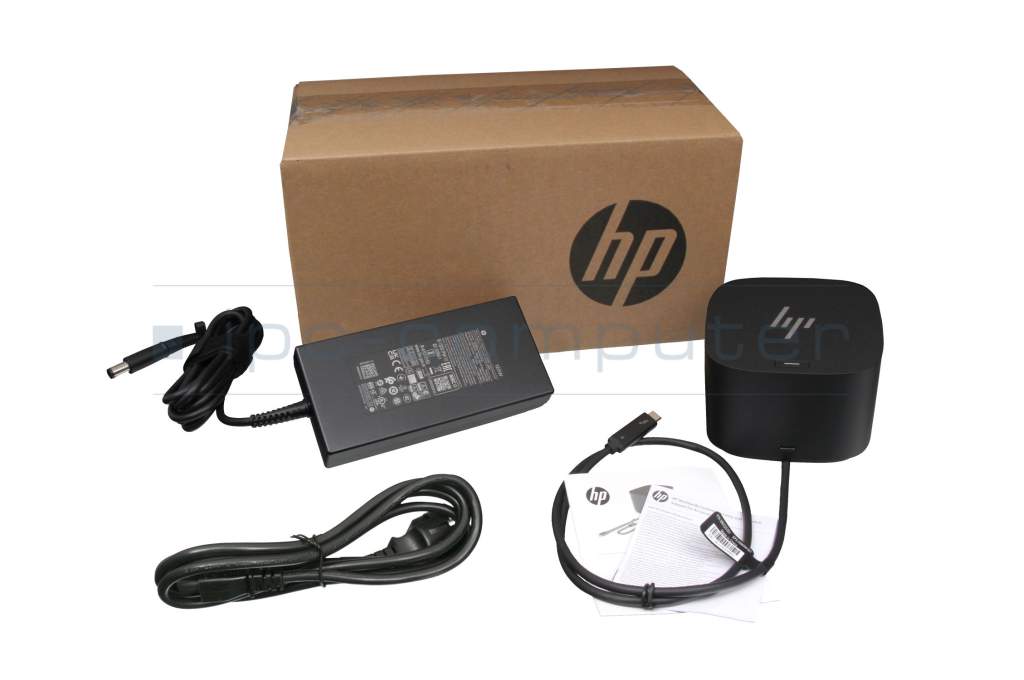

4x UHD - 3840x2160 @ 60Hz - Delivery includes
-
AC-Adapter
Manual
Port Replicator - Included ac-adaptor
- 120W
- Compatible operating systems
-
Chrome
Mac OS
Windows 10 (32bit/64bit)
Windows 11 - Length / Width / Hight
- 9.8 cm / 9.8 cm / 6.7 cm
Pros
Use the existing interfaces of your laptop separately. Easily connect and disconnect the ports for e.g. mouse, printer, USB in a fast and secure way. Mirroring or extending your desktop to external monitors.
With a Dock connected via USB type-C, no additional power supply needed to operate your laptop and charge your battery. Please note that a maximum power consumption of 100 watts is possible via the USB-C connection. (may differ a little between manufacturers and constellation of laptop and dock). If your laptop has a higher power consumption, you will still need a additional power supply for operation.
HP Thunderbolt Dock 120W G4
Focus on the essentials and seamlessly connect your HP Thunderbolt Dock G4 to most notebooks and operating systems, whether Windows or Chrome OS.
Simplify your device management at home or in the office and boost your security, productivity, and connectivity.
With just a single cable connection, you can protect your network and devices from the moment you log on, charge your notebook with up to 100W, double your Ethernet speed, connect your peripherals, and expand your productivity with up to four 4K displays.
Please note:
- For USB-C alt mode functionality, the host PC must support Thunderbolt™ 3 or Thunderbolt™ 4.
- Backward compatible with USB-C® alt mode, ports operate at USB-C® alt mode speeds depending on host specifications. For USB-C alt mode functionality, the host PC must support the DisplayPort alt mode protocol through its USB-C port.
- Charging and port replication is supported by notebooks that have implemented the USB-C® alt mode industry specifications.
- Power button to turn on or wake up the system, Wake-on LAN from S4/S5 and MAC Address Pass-Through S0, S3, S4, S5 only work on HP or HP supported laptops.
- HP does not provide Ethernet and audio drivers for Mac PCs.
Detailed instructions and further product information can be found on the support homepage of HP
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N 4J0A2AA
- HP EliteBook 850 G7 , HP EliteBook x360 830 G8 , HP Elite Dragonfly G3 , HP Envy 16-h0000 , HP Envy x360 2in1 15-ew0000 , HP Envy 13-bf0 , HP EliteBook 840 G8 , HP ZBook 14u G5 , HP EliteBook 830 G7 , HP EliteBook x360 1030 G7
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
Videos & Contributions
HP G4 & G5 Docking Station Review
Review of the HP G4 & HP G5 - Thunderbolt 4/USB-C Docking Station
Learn more >Using a laptop with a dock even when it is folded down
In this quick tip we show how you can work with a docking station and an external monitor even when your laptop is folded down.
Learn more >Which USB dock connector do I need for my notebook?
To choose the right docking station for your notebook, you should know which USB port you need. In this video, we will go into the differences and special features of the USB ports.
Learn more >
The "secret" with the power button
Docking station vs. port replicator
The power button does not activate the notebook?
Important and useful informations about laptop Docking stations
Frequently asked questions about Docking stations
- Do docking stations work even if they can only be delivered with a stronger ac adapter?
Technically speaking, a more powerful power supply can be used without any problems and does not pose any danger to your device, as it always draws as much energy as it currently needs. The only disadvantage is the usually higher price of the more powerful product.
- Do I need special drivers for my docking station or port replicator?
In order to use your docking station or port replicator, you need the appropriate drivers. The easiest way to find these drivers is directly from the manufacturer of the docking station/port replicator. You will usually need the serial number or the exact model name.
The driver for our in-house port replicator can be found on our info page for the IPC port replicator.
- Is it possible to use an USB-C/USB-3.0 port replicator from different Manufacturers?
Yes, as general rule this is possible. Although you have to consider the power capacity and the type of the connection.
- What advantages does an USB-C port replicator/docking station grant?
The most remarkeble advantages in comparison to USB3.0, are a faster data transmission rate and the possibility to charge the device via USB-C. Also is USB-C becoming the default option for more and more devices.
- What port replicator do i require?
On the one hand you have to consider the compatibility of your device. If your laptop has no USB-C connection, it can cause problems with newer models. On the other hand the port replicator has to produce enough power and can not convert less watts than your Notebook needs. At last you can choose how many and what type of connections for peripherals you need.
