Lenovo 5A11R70778 ThinkPad USB4 Smart Dock 5500 incl. 100W Netzteil
plus shipping charges
- Standardlieferung 15. June - 16. June
- Expresslieferung 15. June
- bei Bestellung innerhalb 19 hrs 21 min
Substitute part numbers:
ADL100SCC3A, SA11R70776
40BC0135EU Lenovo ThinkPad USB4 Smart Dock 5500 incl. 135W ac-adapter
plus shipping charges
Product Info
- Manufacturer
- Lenovo
- Item Number
- 5A11R70778
- Sub-Partnumbers
- ADL100SCC3A, SA11R70776
- Safety information
- Sicherheits- & Herstellerkontakt-Informationen
The offered manufacturer number is an alternative (substitute) to the spare part number you are looking for.
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- USB-C 4

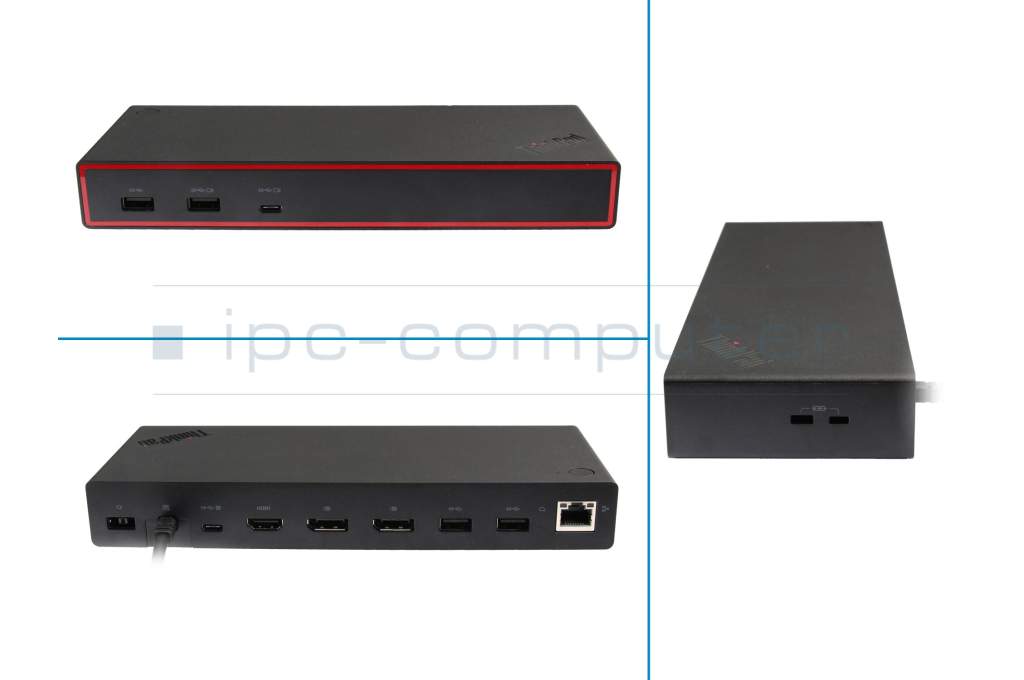

- Connectors
-
1x DC-In (Power supply)
1x Ethernet (RJ-45)
1x HDMI 2.1
2x DisplayPort 1.4
2x Kensington-Lock
2x USB-C 3.2 Gen 2
4x USB-A 3.2 Gen 2 - Max. resolution of external monitors
-
1x 8K - 7680x4320 @ 60Hz
2x 4K - 3840x2160 @ 144Hz
4x 4K - 3840x2160 @ 60Hz - Delivery includes
-
AC-Adapter
Installation manual
Manual
Port Replicator
Power cable
Safety Information - Included ac-adaptor
- 100W
- Compatible operating systems
-
Mac OS
Windows 10 (32bit/64bit)
Windows 11 - Length / Width / Hight
- 21.8 cm / 8 cm / 3.5 cm

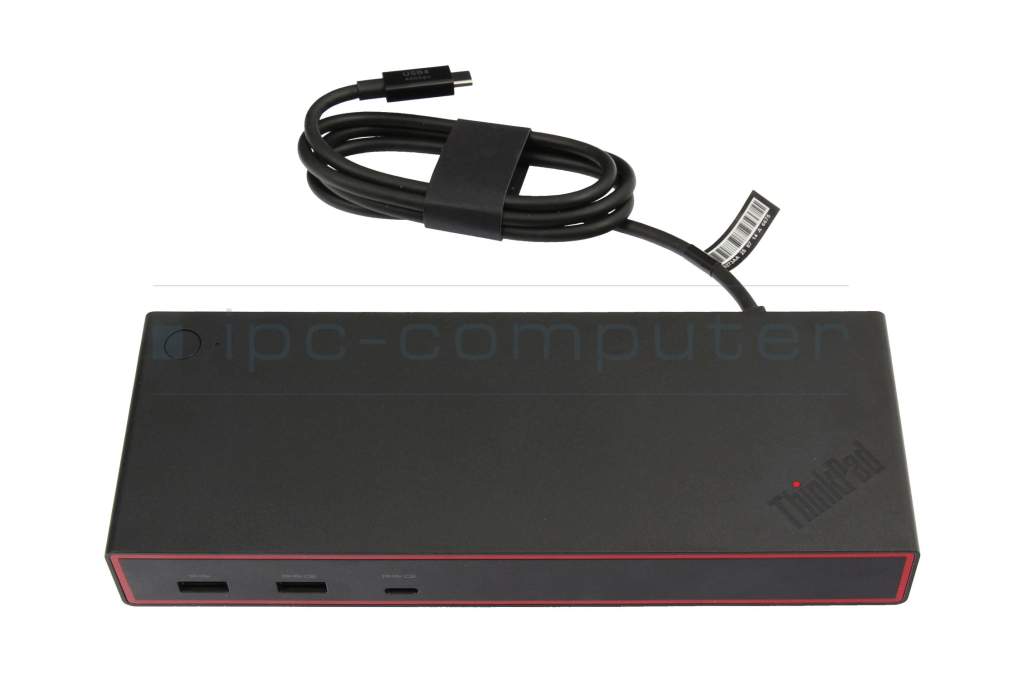

Lenovo ThinkPad USB4 Smart Dock 5500 (40BC0100EU)
The Lenovo ThinkPad USB4 Smart Dock 5500 is a business-class docking station that expands a single USB4 port into a powerful desktop workstation. Designed for professional and business use, it offers fast data transfer rates, flexible display support, and reliable charging in a compact design.
Key features
- USB4 connectivity with up to 40 Gbps bandwidth
- Multiple display support: up to 1× 8K at 60 Hz, 2× 4K at 144 Hz, or 4× 4K at 60 Hz
- Display outputs: 2× DisplayPort 1.4, 1× HDMI 2.1, 1× USB-C (video capable)
- Extensive connectivity, including USB-A, USB-C, and Gigabit Ethernet
- Up to 65 W USB Power Delivery, 100 W power adapter included
- Lenovo Accessories Fleet Manager support for IT management
- Secure Eclipse Black design with NanoSaver and MicroSaver lock slots

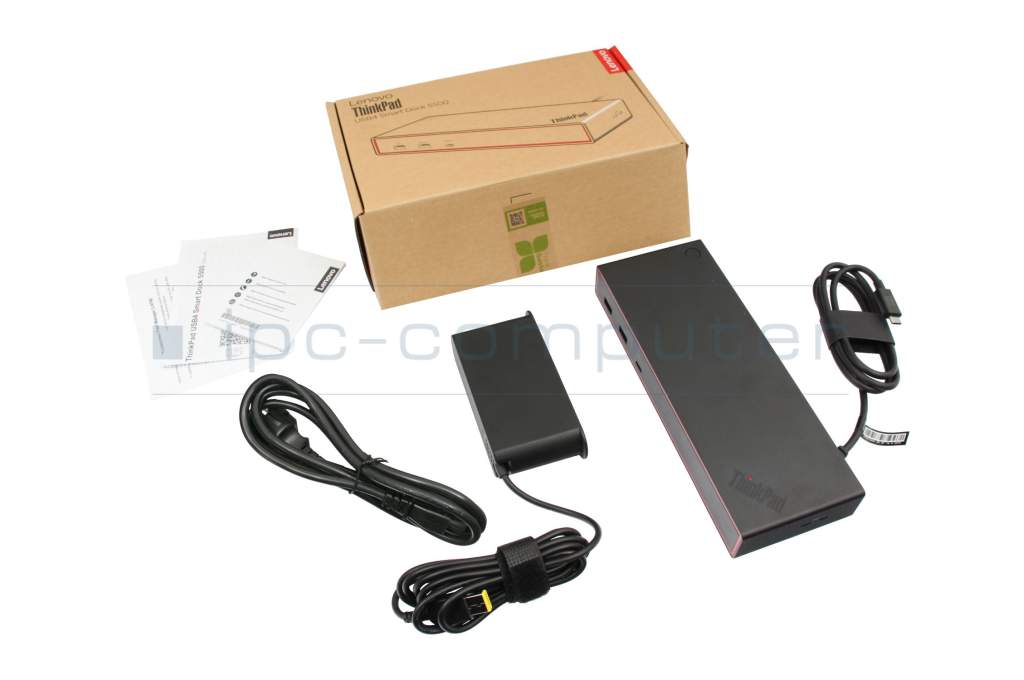

What's in the box
- ThinkPad USB4 Smart Dock 5500

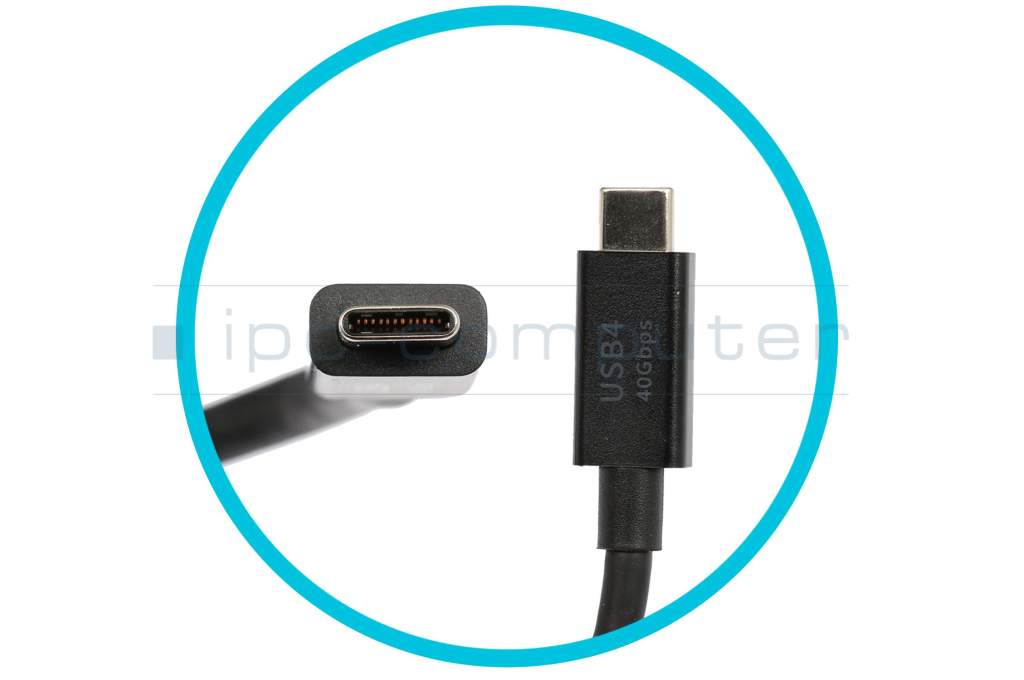

- Integrated USB4 cable (1 m)
- 100 W power adapter and power cord
- Quick start guide
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N 5A11R70778
- Lenovo ThinkPad L14 G6 (21S6) , Lenovo ThinkPad T14 Gen 6 (21QH) , Lenovo ThinkPad T14 G5 (21ML/21MM) , Lenovo ThinkPad T14s Gen 5 (21LS/21LT) , Lenovo ThinkPad L14 G5 (21L1/21L2) , Lenovo ThinkPad X1 2-in-1 Gen 9 (21KE/21KF) , Lenovo ThinkPad X13 Gen 5 (21LU/21LV) , Lenovo ThinkPad L16 Gen 1 (21L3/21L4) , Lenovo ThinkPad T16 Gen 3 (21MN/21MQ) , Lenovo ThinkPad X13 2-in-1 Gen 5 (21LW/21LX)
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
