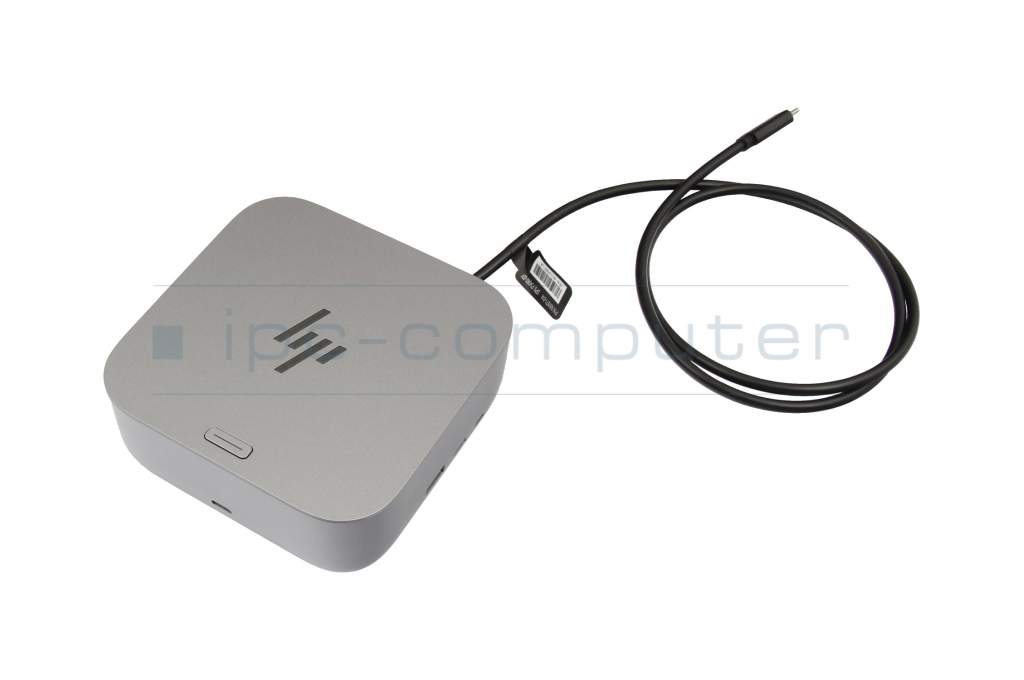

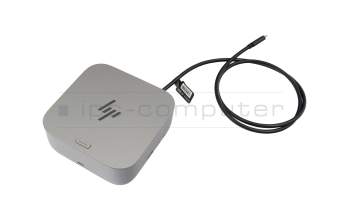

HP 9X472UT#ABB Thunderbolt 4 Dockingstation G6 100 W incl. 120W Netzteil
Substitute part numbers:
9X472UT, P04189-001
- Manufacturer
- HP
- Item Number
- 9X472UT#ABB
- Sub-Partnumbers
- 9X472UT, P04189-001
- Safety information
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- Thunderbolt 4
- Connectors
-
1x HDMI
1x Kensington-Lock
1x RJ-45
1x Thunderbolt 4
1x USB-A 3.2 Gen 2
2x DisplayPort
2x USB-A 3.2 Gen 1
2x USB-C 3.2 Gen 2 - Max. resolution of external monitors
-
1x 5K - 5120x2880 @ 60Hz
2x 4K - 3840x2160 @ 60 Hz
3x QHD - 2560x1440 @ 60Hz

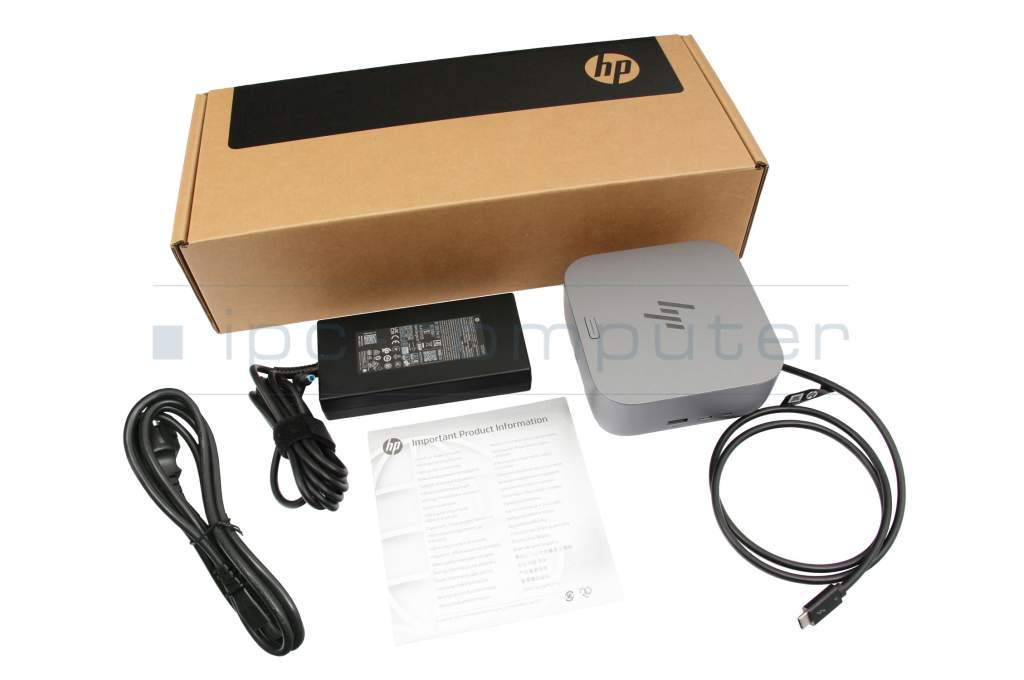

4x 4K - 3840x2160 @ 60Hz - Delivery includes
-
AC-Adapter
Docking Station
Manual
Power cable - Included ac-adaptor
- 120W
- Compatible operating systems
-
ChromeOS
Linux / Ubuntu
Mac OS
Windows 10 (32bit/64bit)
Windows 11 - Length / Width / Hight
- 12 cm / 12 cm / 4.5 cm
HP Thunderbolt 4 Docking Station G6 100W: Powerful Thunderbolt 4 dock with 100W Power Delivery, multi-display support, and fast data transfers
Looking for a reliable Thunderbolt 4 docking station? This docking station with Thunderbolt 4 connectivity is perfect for HP laptops with a Thunderbolt 4 port (also backward compatible with laptops with a USB-C port). This docking station offers an efficient solution for connecting numerous devices, running multiple monitors, and optimizing your workspace. Benefit from high-performance technology with 4K and 5K UHD support and versatile connectivity options.
Highlights of this Thunderbolt 4 docking station:
Compatibility: Specifically designed for HP laptops with Thunderbolt 4 and USB-C ports, guaranteeing a stable connection and high performance.
Multi-display support: Connect one 5K UHD display or up to four 4K UHD displays for enhanced overview and productivity in your workday.
Fast charging & Power Delivery: Charge your laptop while it's running with up to 100W of power via Thunderbolt 4.
Versatile monitor connections: One HDMI port and two DisplayPort interfaces enable flexible multi-monitor configurations, ideal for professional applications.
Multiple USB ports: A total of five USB ports (one USB-C 3.1, three USB 3.2, and one Thunderbolt 4) ensure fast data transfer and easy cable management.
High-speed network connection: A 2.5 Gigabit LAN RJ45 port provides a Gigabit LAN connection, guaranteeing process optimization in the office or home office.
Advanced features: Support for PXE boot, Wake-on-LAN, and MAC address pass-through for professional network integration.

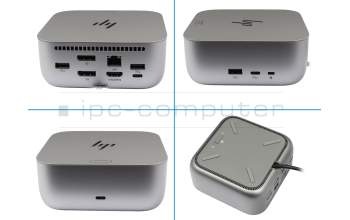

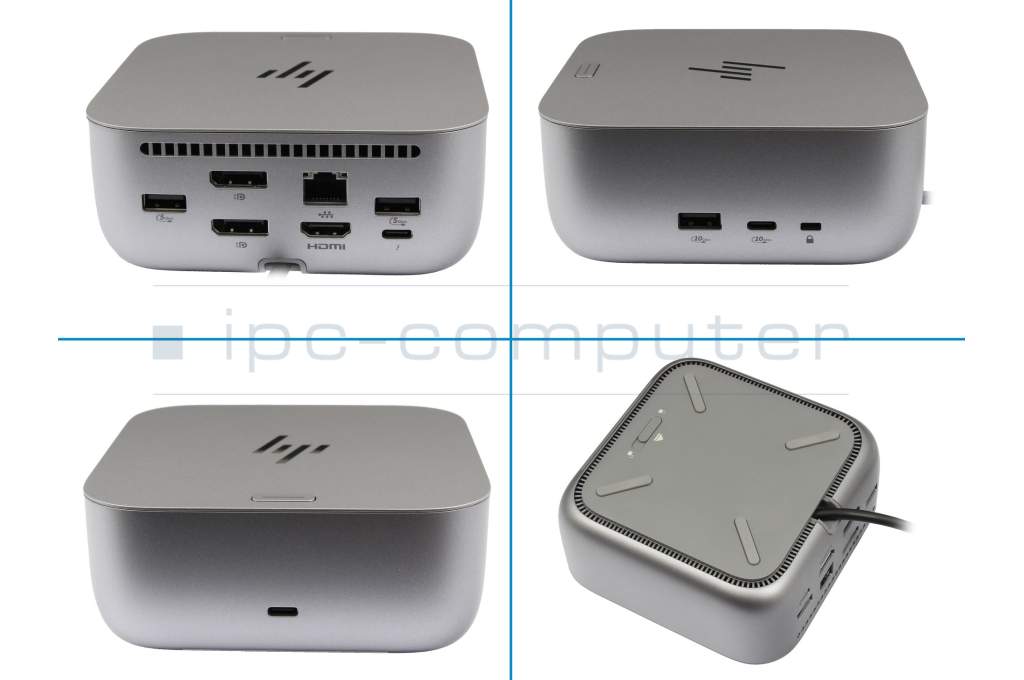

Main ports:
1x USB Type-C 10 Gbps signaling rate (up to 15 W power delivery via USB)
1x USB Type-A 10 Gbps signaling rate (with charging function)
1x Nano security lock slot
1x USB Type-C 10 Gbps signaling rate (up to 15 W power delivery via USB)
1x Thunderbolt 4 with USB Type-C 40 Gbps signaling rate
2x USB Type-A 5 Gbps signaling rate (with charging function)
1x HDMI 2.1
2x DisplayPort 1.4
1x RJ-45 (2.5 GbE)
Thunderbolt 4/USB-C 3.2 with 40 Gbps signaling rate for fast connection and high flexibility
Display ports:
HDMI, DisplayPort output, and USB Type-C/Thunderbolt for brilliant 4K or 5K displays
With this Thunderbolt 4 docking station for HP laptops equip you perfectly for effective work, presentations, or creative projects. They also reliably connect your peripherals and enable professional multi-display use – for the highest demands.
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N 9X472UT#ABB
- HP ProBook x360 435 G7 , HP Spectre x360 16-f0000 , HP Elite Dragonfly G3 , HP EliteBook 630 G9 , HP Spectre x360 14-ef2000 , HP EliteBook 1040 G10 , HP ZBook Firefly 14 G10 , HP ZBook Fury 16 G10 , HP EliteBook 640 G10 , HP ZBook Power G11
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
Videos & Contributions
Using a laptop with a dock even when it is folded down
In this quick tip we show how you can work with a docking station and an external monitor even when your laptop is folded down.
Learn more >Which USB dock connector do I need for my notebook?
To choose the right docking station for your notebook, you should know which USB port you need. In this video, we will go into the differences and special features of the USB ports.
Learn more >
The "secret" with the power button
Docking station vs. port replicator
The power button does not activate the notebook?
Important and useful informations about laptop Docking stations
Frequently asked questions about Docking stations
- Do docking stations work even if they can only be delivered with a stronger ac adapter
Technically speaking, a more powerful power supply can be used without any problems and does not pose any danger to your device, as it always draws as much energy as it currently needs. The only disadvantage is the usually higher price of the more powerful product.
- Do I need special drivers for my docking station or port replicator?
In order to use your docking station or port replicator, you need the appropriate drivers. The easiest way to find these drivers is directly from the manufacturer of the docking station/port replicator. You will usually need the serial number or the exact model name.
The driver for our in-house port replicator can be found on our info page for the IPC port replicator.
- Is it possible to use an USB-C/USB-3.0 port replicator from different Manufacturers
Yes, as general rule this is possible. Although you have to consider the power capacity and the type of the connection.
- What advantages does an USB-C port replicator/docking station grant
The most remarkeble advantages in comparison to USB3.0, are a faster data transmission rate and the possibility to charge the device via USB-C. Also is USB-C becoming the default option for more and more devices.
- What port replicator do i require
On the one hand you have to consider the compatibility of your device. If your laptop has no USB-C connection, it can cause problems with newer models. On the other hand the port replicator has to produce enough power and can not convert less watts than your Notebook needs. At last you can choose how many and what type of connections for peripherals you need.
All questions about Docking stations
