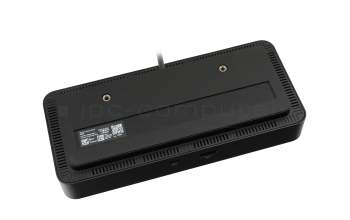

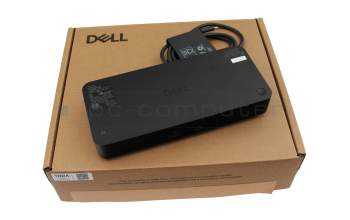

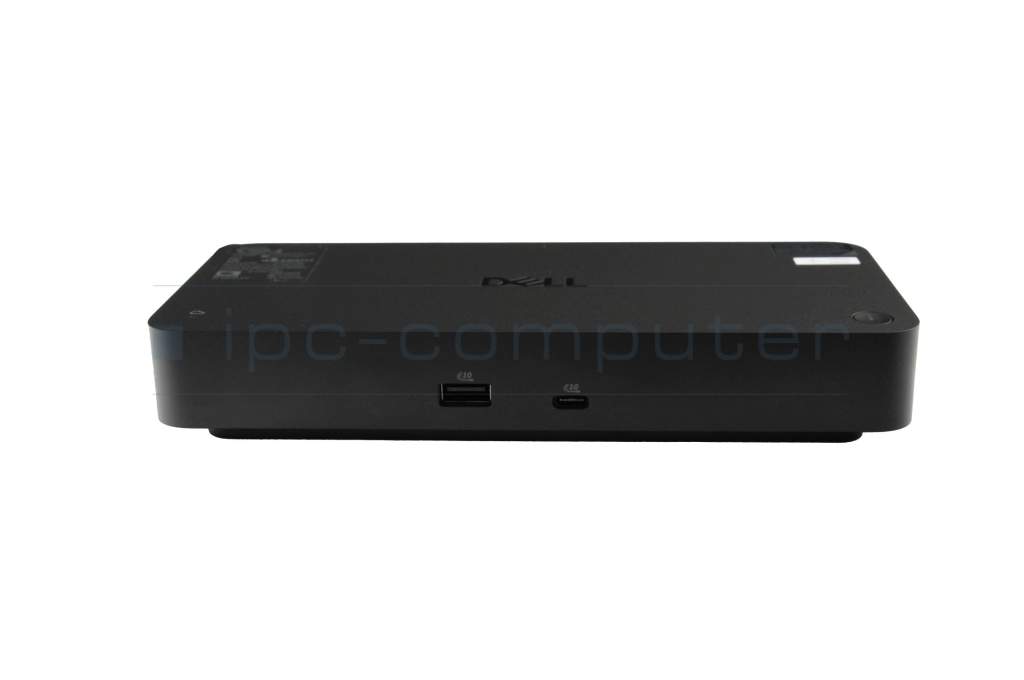

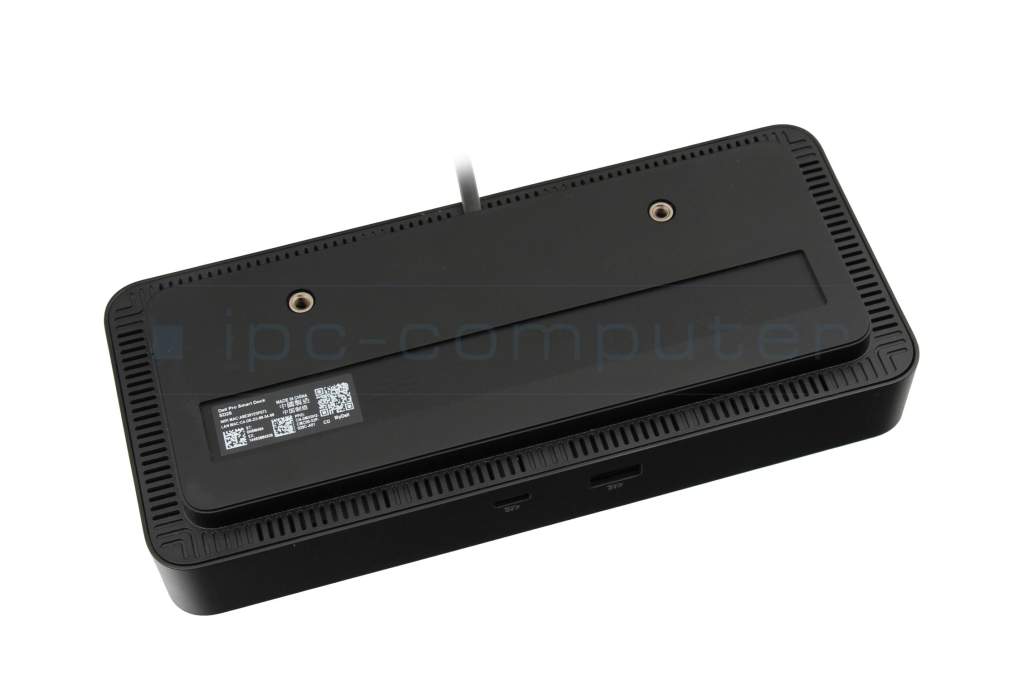

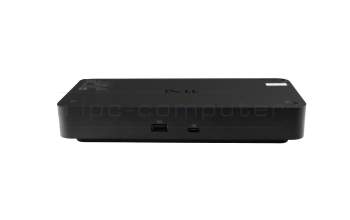

Dell CN-59JXY Pro Smart Dock SD25 incl. 180W Netzteil
- Manufacturer
- Dell
- Item Number
- CN-59JXY
- Primary Partnummer
- 059JXY
- Sicherheitsinformationen
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- USB-C 3

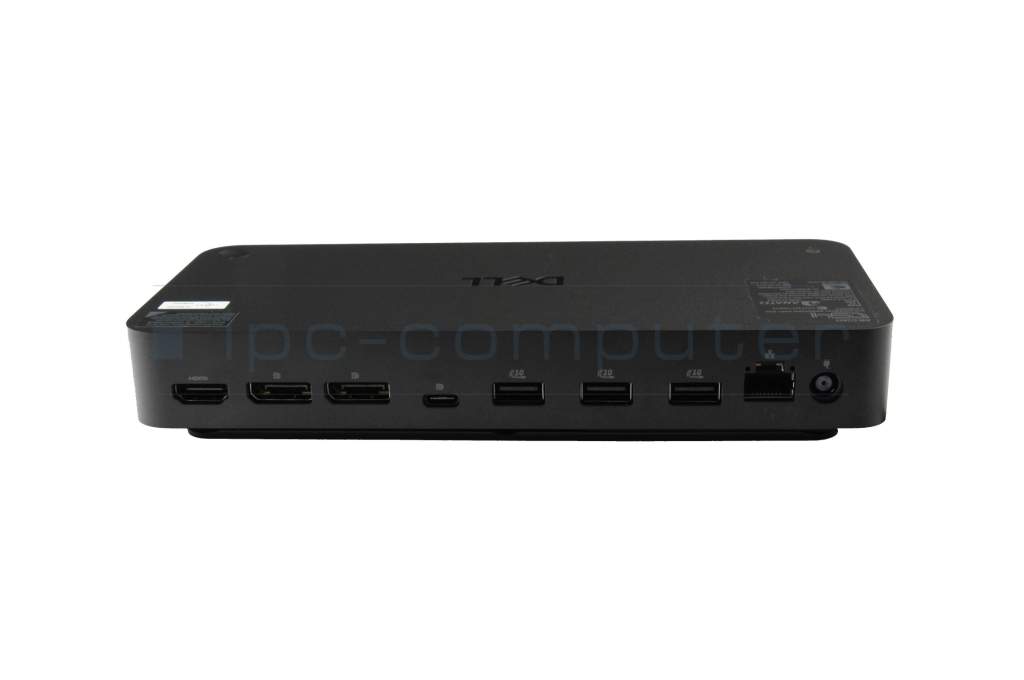

- Connectors
-
1x DC-In (Power supply)
1x HDMI

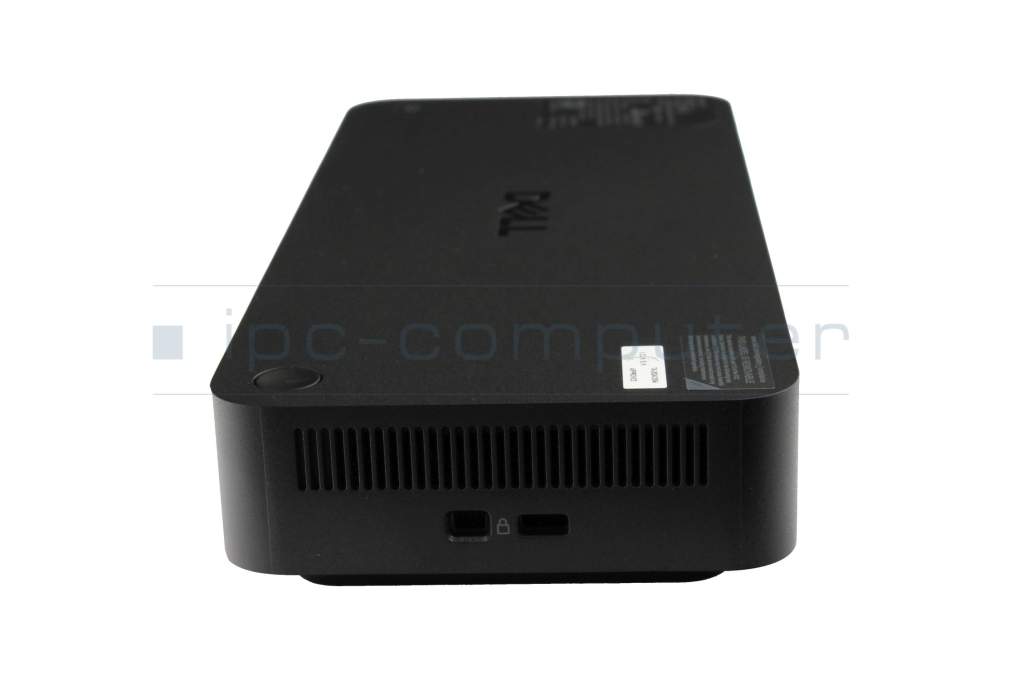

1x Kensington-Lock
1x USB-C + Data + PowerDelivery
1x USB-C 3.2 Gen 2
1x USB-C 3.2 Gen 2 + PowerDelivery + DisplayPort
2x DisplayPort 1.2 - Max. resolution of external monitors
-
1x 6K - 6144 x 3456 @ 60Hz
2x 5K - 5120x1440 @ 60Hz
3x WQHD 3440 × 1440 @ 120 Hz

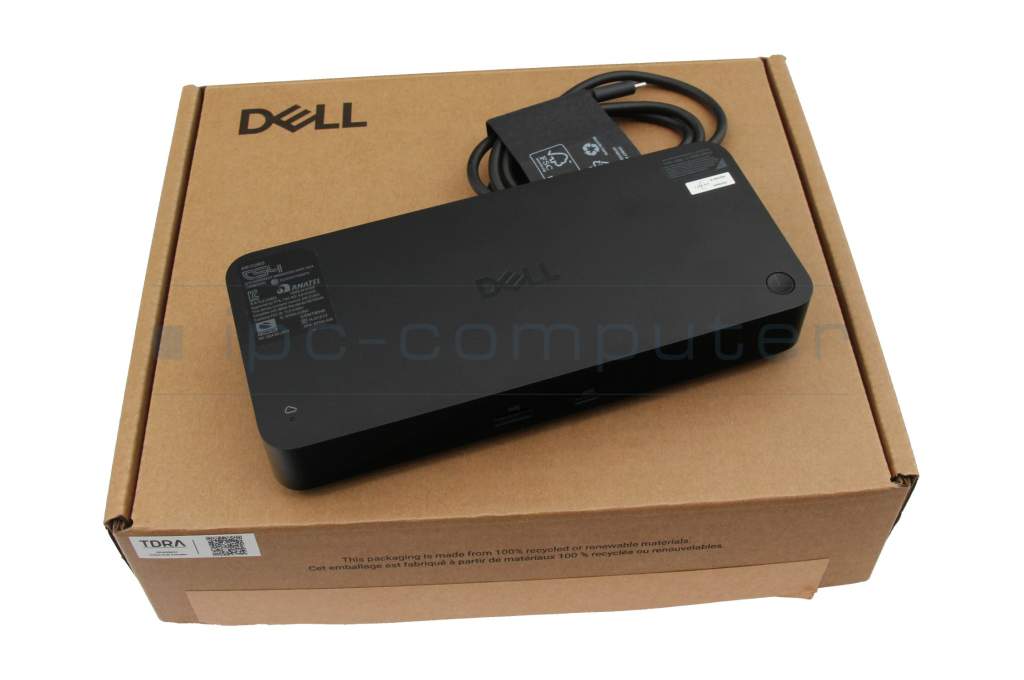

4x WQHD 3440 × 1440 @ 120 Hz - Delivery includes
-
AC-Adapter
Manual
Port Replicator
Power cable
Safety Information
USB-C cabel - Included ac-adaptor
- 180W
- Compatible operating systems
-
ChromeOS
Linux / Ubuntu
Red Hat Enterprise Linux
Windows 10 (32bit/64bit)
Windows 11 - Length / Width / Hight
- 20,5 cm / 9 cm / 3.5 cm
Dell Pro Smart Dock SD25 (210-BRFM, 180W) – Additional Technical Specifications
- Device Type: USB-C docking station with Microsoft Teams Rooms (MTR) integration
- Compatibility: Dell Latitude, Precision, XPS, and other notebooks with USB-C DisplayPort Alt Mode
- Power supply: 180W power adapter, up to 90W power delivery via USB-C (notebook charging)
- Maximum number of monitors: Up to 3 external monitors (depending on notebook/GPU and OS)
- Maximum resolutions:
-
- Single display: Up to 4K (3840 × 2160) at 60 Hz
- Two displays: Up to 2 × 4K (3840 × 2160) at 60 Hz
- Three displays: Up to 3 × Full HD (1920 × 1080) at 60 Hz
Special features & functions
- Optimized for Microsoft Teams Rooms for Windows (MTR certified)
- Supports Wake-on-LAN, PXE boot, MAC address passthrough (on supported systems)
- Firmware updates with Dell Firmware Update Utility
- Kensington and Noble Security Slot
Category
- Category
- Dockings
- Usage
- Laptop
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
Videos & Contributions
Using a laptop with a dock even when it is folded down
In this quick tip we show how you can work with a docking station and an external monitor even when your laptop is folded down.
Learn more >Which USB dock connector do I need for my notebook?
To choose the right docking station for your notebook, you should know which USB port you need. In this video, we will go into the differences and special features of the USB ports.
Learn more >
The "secret" with the power button
Docking station vs. port replicator
The power button does not activate the notebook?
Important and useful informations about laptop Docking stations
Frequently asked questions about Docking stations
- Do docking stations work even if they can only be delivered with a stronger ac adapter
Technically speaking, a more powerful power supply can be used without any problems and does not pose any danger to your device, as it always draws as much energy as it currently needs. The only disadvantage is the usually higher price of the more powerful product.
- Do I need special drivers for my docking station or port replicator?
In order to use your docking station or port replicator, you need the appropriate drivers. The easiest way to find these drivers is directly from the manufacturer of the docking station/port replicator. You will usually need the serial number or the exact model name.
The driver for our in-house port replicator can be found on our info page for the IPC port replicator.
- Is it possible to use an USB-C/USB-3.0 port replicator from different Manufacturers
Yes, as general rule this is possible. Although you have to consider the power capacity and the type of the connection.
- What advantages does an USB-C port replicator/docking station grant
The most remarkeble advantages in comparison to USB3.0, are a faster data transmission rate and the possibility to charge the device via USB-C. Also is USB-C becoming the default option for more and more devices.
- What port replicator do i require
On the one hand you have to consider the compatibility of your device. If your laptop has no USB-C connection, it can cause problems with newer models. On the other hand the port replicator has to produce enough power and can not convert less watts than your Notebook needs. At last you can choose how many and what type of connections for peripherals you need.
