Dell SD25TB5 Pro Thunderbolt 5 Smart Dock – SD25TB5 incl. 330W Netzteil

530^12$

incl. Tax (19%)
plus shipping charges

Only1 pieces in stock.

Standardlieferung 5. March - 9. March
Expresslieferung 4. March
bei Bestellung innerhalb 12 hrs 11 min

Manufacturer: Dell
Item Number: SD25TB5
Primary Partnummer: 02P2J7
Safety information: Sicherheits- & Herstellerkontakt-Informationen

Common data

Condition: New

Technical Data

Connexion to the laptop: Thunderbolt 5

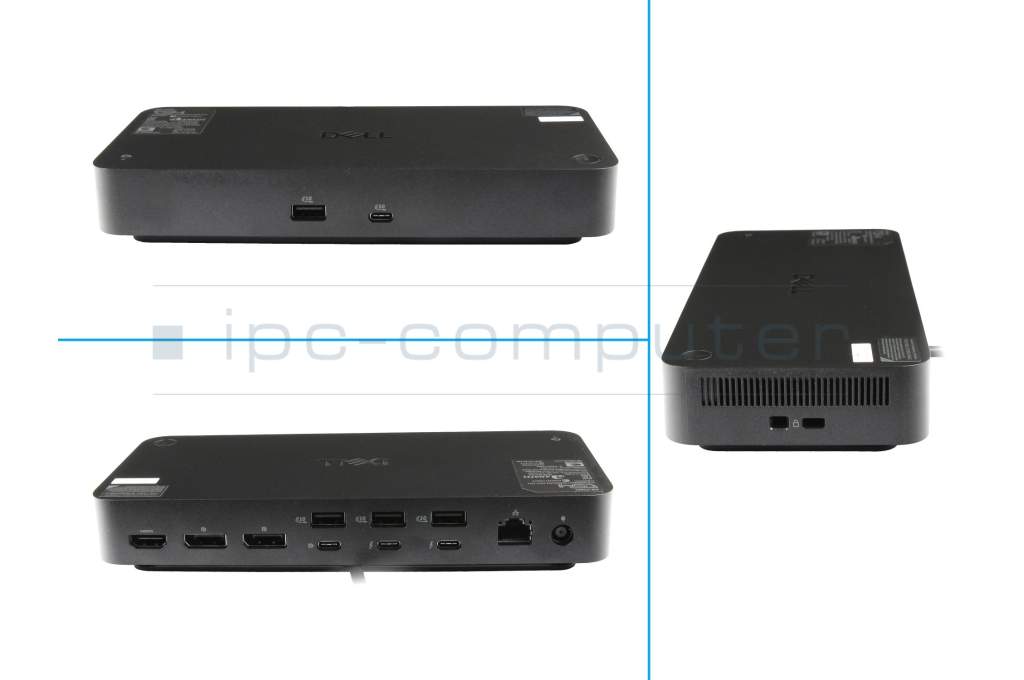

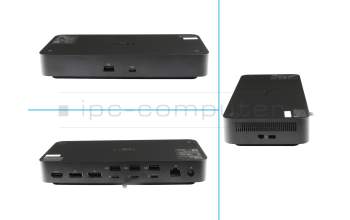

Connectors: 1x DC-In (Power supply)
1x Ethernet RJ-45 2.5Gbps
1x HDMI 2.1
1x USB-C 3.2 Gen 2
1x USB-C 3.2 Gen 2 + DisplayPort
2x DisplayPort 2.1
2x Kensington-Lock
2x Thunderbolt 5
4x USB-A 3.2 Gen 2
Max. resolution of external monitors: 1x 5K - 3440x1440 @ 60Hz
1x 8K - 7680x4320 @ 60Hz
2x 4K - 3840x2160 @ 60Hz
2x 6K - 6144 x 3456 @ 60Hz
3x 4K - 3840x2160 @ 120Hz
3x 4K - 3840x2160 @ 60Hz
3x WQHD 3440 × 1440 @ 60 Hz
4x 4K - 3840x2160 @ 120Hz
4x 4K - 3840x2160 @ 60Hz
4x QHD - 2560x1440 @ 60Hz
Delivery includes: AC-Adapter
Manual
Pocket
Port Replicator
Power cable
Safety Information
Included ac-adaptor: 330W
Compatible operating systems: ChromeOS
Linux
Linux / Debian
Linux / Red Hat Enterprise
Linux / Ubuntu
Mac OS
Windows 10 (32bit/64bit)
Windows 11
Length / Width / Hight: 20.5 cm / 9 cm / 3.5 cm

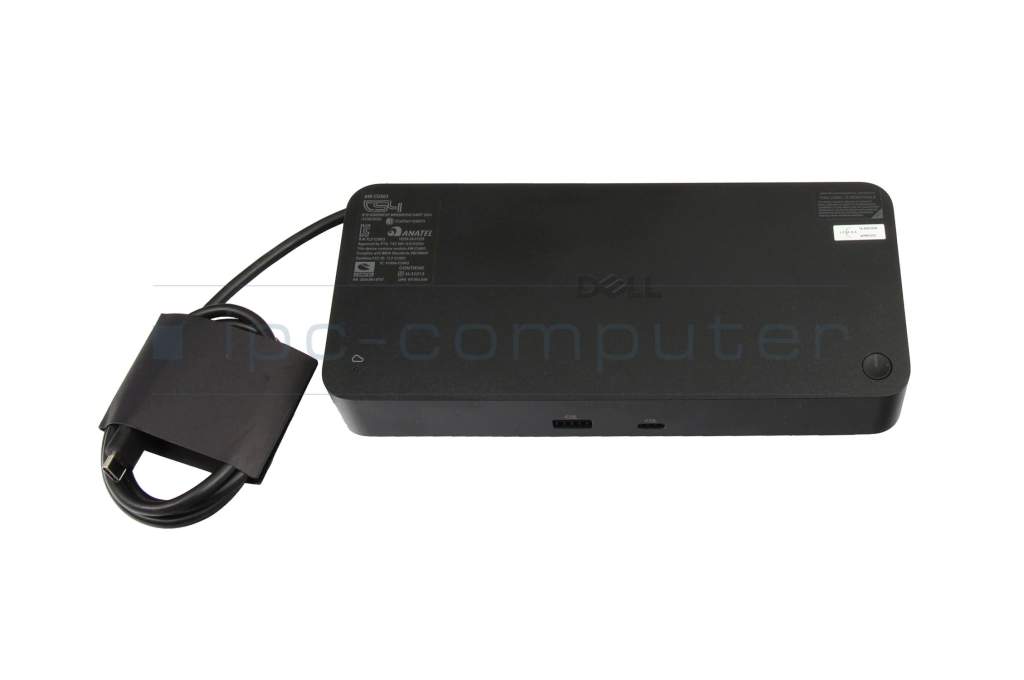

Dell Pro Thunderbolt 5 Smart Dock – SD25TB5

The Dell Pro Thunderbolt 5 Smart Dock – SD25TB5 is a powerful docking station offering a wide range of connection options for professional workplaces. With cutting-edge Thunderbolt 5 technology, it enables fast data transfer, impressive video resolutions, and efficient power delivery in an elegant design. Ideal for demanding users requiring maximum connectivity and flexibility.

Technical Data

Management Functions

Kernel DMA protection (DMA = Direct Memory Access)
Port disablement
Wake-on-LAN
Dock power button sync
PXE boot
WLAN-to-LAN switch
MAC address forwarding
Intel AMT over Thunderbolt with selected Intel vPro PCs
Dell Command Update (DCU)

Monitor Connections & Video

Number of monitor ports: 4
Supported display modes:

6K @ 60Hz
8K @ 60Hz
4K @ 120Hz
5K @ 60Hz
4K @ 60Hz
WQHD @ 60Hz
QHD @ 60Hz

Supported resolutions:

7680 x 4320
2560 x 1440
6144 x 3456
3440 x 1440
5120 x 2160
3840 x 2160

Interfaces / Ports

Host interfaces:

2 x DisplayPort 2.1
1 x HDMI 2.1
1 x USB-C 3.2 Gen 2 multi-function DisplayPort 2.1
2 x Thunderbolt 5

USB ports (data only):

4 x USB-A 3.2 Gen 2 (10 Gbps)
1 x USB-C 3.2 Gen 2 (10 Gbps)

Total USB ports: 6
Ethernet: 2.5 Gigabit Ethernet
Network (RJ-45): Yes

Software & Operating Systems

Supported OS: Windows 10, Windows 11, Ubuntu 24.04, macOS, Red Hat Enterprise Linux 9.7, ChromeOS 141

Power Supply

Maximum power supply: 330 W
Power source: Power adapter

Dimensions, Weight & Others

Height: 205 mm
Width: 90 mm
Depth: 35,3 mm
Weight: 632 g

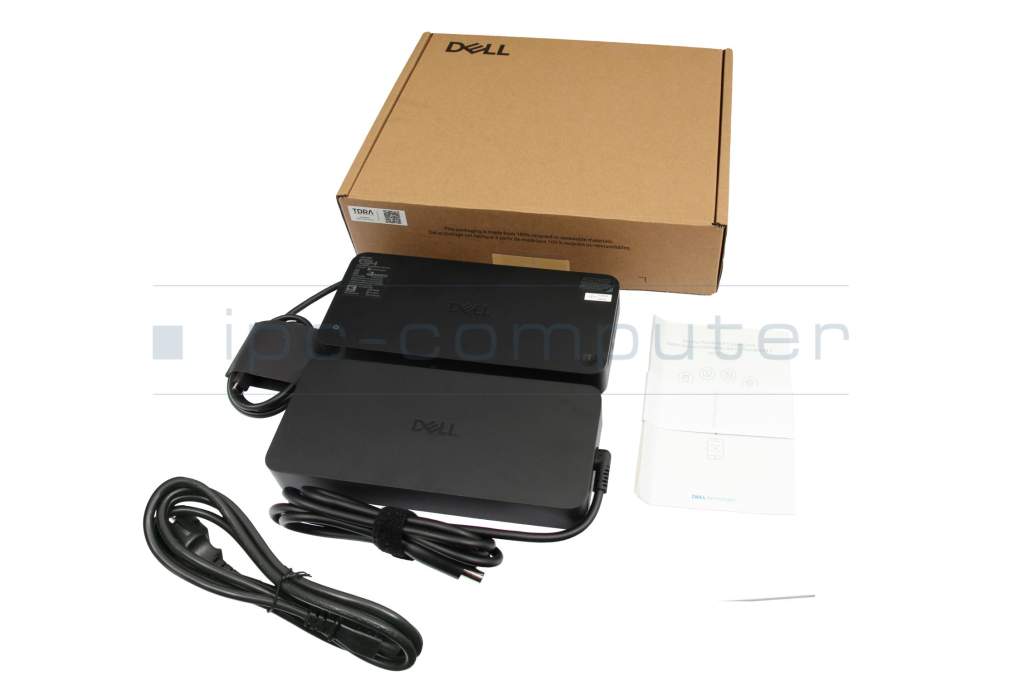

Package Contents

SD25TB5 Docking Station
Power supply
Power cable
Documentation (Quick start, safety, environmental, regulatory information)
