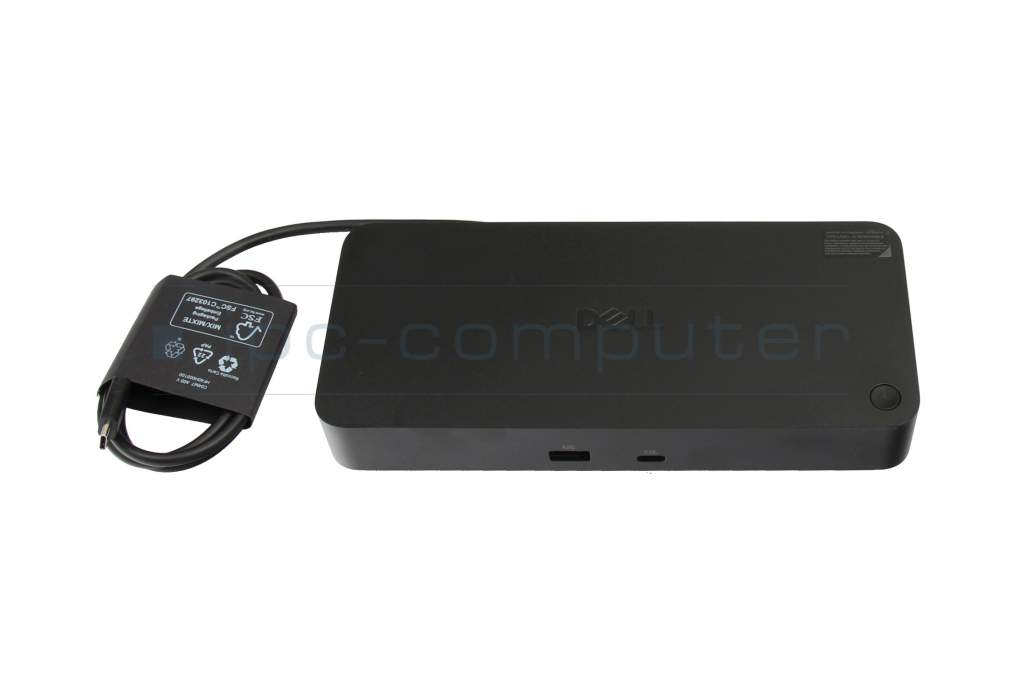

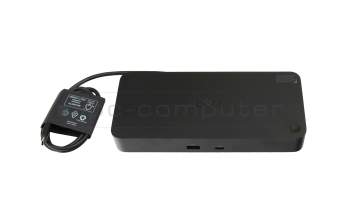

Dell WD25Z_130W Pro Dock WD25Z incl. 180W Netzteil
plus shipping charges
- Standardlieferung 21. July - 23. July
- Expresslieferung 21. July
- bei Bestellung innerhalb 4 hrs 04 min
Substitute part numbers:
210-BTJB, OTK7PD, WD25Z (5397321029045), DELL-WD25Z
- Manufacturer
- Dell
- Item Number
- WD25Z_130W
- Sub-Partnumbers
- 210-BTJB, OTK7PD, WD25Z, DELL-WD25Z
- Safety information
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- USB-C 3
- Connectors
-
1x DC-In (Power supply)
1x Ethernet RJ-45 2.5Gbps
1x HDMI 2.1
1x USB-C 3.2 Gen 2
1x USB-C 3.2 Gen 2 + PowerDelivery
2x DisplayPort 1.4
2x Kensington-Lock
4x USB-A 3.2 Gen 2 - Max. resolution of external monitors
-
1x 4K - 3840x2160 @ 60Hz
1x 6K - 6144 x 3456 @ 60Hz
2x 5K - 5120x1440 @ 60Hz
2x QHD - 2560x1440
3x FHD - 1920x1080
3x WQHD - 3440x1440 @ 60 Hz
4x SXGA - 1280x1024 @ 60Hz
4x WQHD - 3440x1440 @ 60 Hz - Delivery includes
-
AC-Adapter
Installation manual
Manual
Port Replicator
Power cable - Included ac-adaptor
- 180W
- Compatible operating systems
-
ChromeOS
Linux
Linux / Debian
Linux / Red Hat Enterprise
Linux / Ubuntu
Windows 10 (32bit/64bit)
Windows 11 - Length / Width / Hight
- 20.5 cm / 9 cm / 3.5 cm
Vorteile
Lösen Sie eingeschränkte Anschlussmöglichkeiten schnell und sicher mit diesem Port Replikator und verbinden Sie auf einfache Weise eine Maus, Drucker, weitere USB-Geräten. Spiegeln oder Erweitern Sie Ihren Desktop auf mehrere externe Monitore. Hier finden Sie den vollständigen Bericht über weitere Vorteile.Mit einem USB-C-Anschluss benötigen Sie nicht nur kein zusätzliches Netzteil zum Betrieb des Notebooks, Sie können mit dem vorhandenen Port Replikator sogar Ihren Akku aufladen. Beachten Sie aber, dass über den USB-C Anschluss maximal eine Leistungsaufnahme von 100 Watt möglich ist. Sollte Ihr Notebook eine höhere Leistungsaufnahme haben, benötigen Sie weiterhin das Netzteil des Notebooks für den Betrieb.
Dell Pro Dock – WD25Z: Maximum Productivity and Connectivity
The Dell Pro Dock WD25Z is the powerful hub for your modern workspace, providing reliable power delivery of up to 130 W for Dell systems. With support for up to four monitors and resolutions up to 6K, this docking station enables premium visual display and efficient multitasking. Thanks to future-proof interfaces such as 2.5 Gigabit Ethernet and USB 3.2 Gen 2, it integrates seamlessly into professional IT infrastructures and offers comprehensive management functions.
Technical Specifications
- Model: Dell Pro Dock – WD25Z
- Manufacturer Part: TK7PD

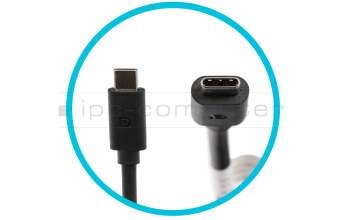

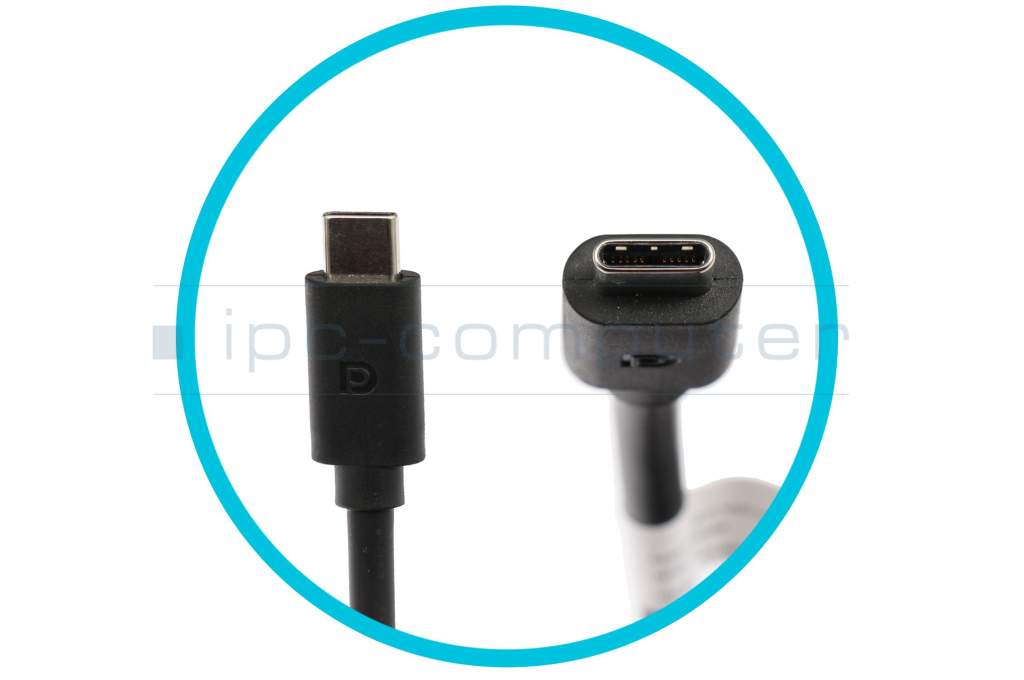

- Connectivity: Wired (USB Type-C Host Interface)
- Cable Length: 90 cm
- Warranty: 3 Year Service
Video and Display Support
- Number of Monitor Ports: 4
- Max Resolution: Up to 6144 x 3456 (6K) @ 60Hz
- Configuration Examples:
- • Single Display: 6K @ 60 Hz / 4K @ 60 Hz
- • Dual Display: 5K @ 60 Hz / QHD @ 60 Hz
- • Triple/Quad Display: WQHD @ 60 Hz / FHD @ 60 Hz
- Video Interfaces: 2x DisplayPort 1.4, 1x HDMI 2.1

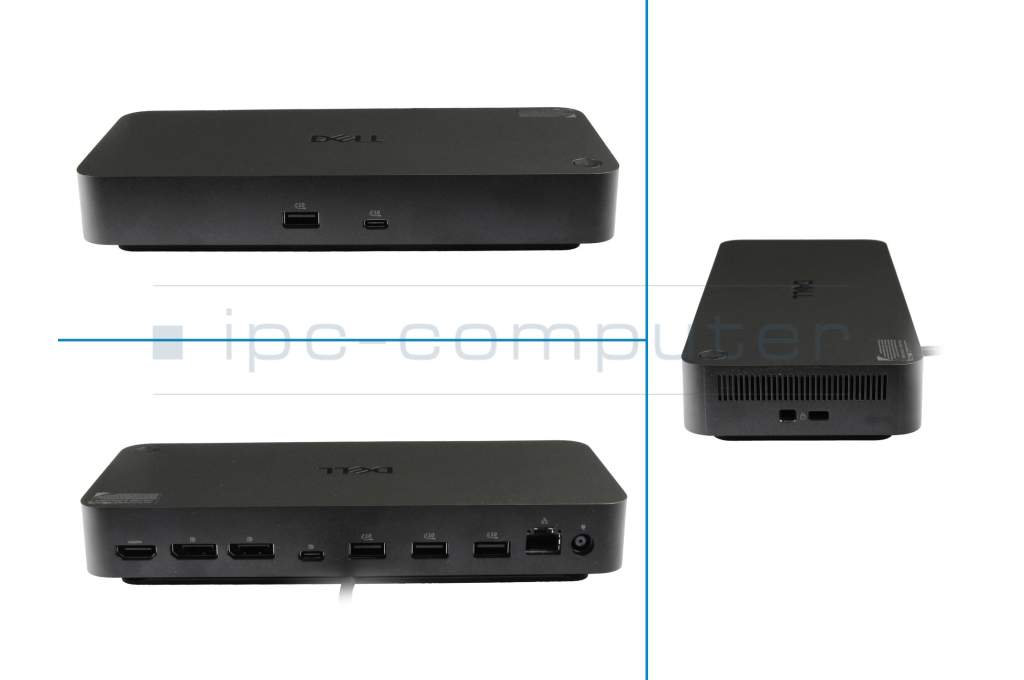

Interfaces & Ports
- Total USB Ports: 6
- • 4x USB 3.2 Gen 2 Type-A
- • 2x USB Type-C (including 1x USB 3.2 Gen 2)
- Network: 1x RJ-45 (2.5 Gigabit Ethernet)
Power Supply
- Power Adapter: 180 W (external power adapter)
- Power Delivery Output:
- • 130 W for Dell Systems
- • 96 W for Non-Dell Systems
Management & Security
- Features: MAC address pass-through, PXE Boot, Wake-on-LAN, Dock power button sync, Kernel DMA protection, Dell Command Update (DCU).
- Security: Kensington security slot, Noble Wedge security slot.
System Compatibility
- Operating Systems: Windows 10/11, Ubuntu 24.04, ChromeOS 137, Red Hat Enterprise Linux 9.6.
Physical Data
- Dimensions (WxDxH): 90 mm x 35.3 mm x 205 mm
- Weight: 550 g
Scope of Delivery
Dell Pro Dock WD25Z, 180 W power adapter, power cord, documentation.
<Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N WD25Z_130W
- Dell XPS 17 (9700) , Dell Latitude 15 (9510) , Dell Latitude 12 2in1 (7210) , Dell Latitude 13 (5320) , Dell Precision 15 (3560) , Dell Precision 15 (5560) , Dell Vostro 13 (5320) , Dell Vostro 15 (3515) , Alienware x15 r2 , Alienware x14 R1
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
