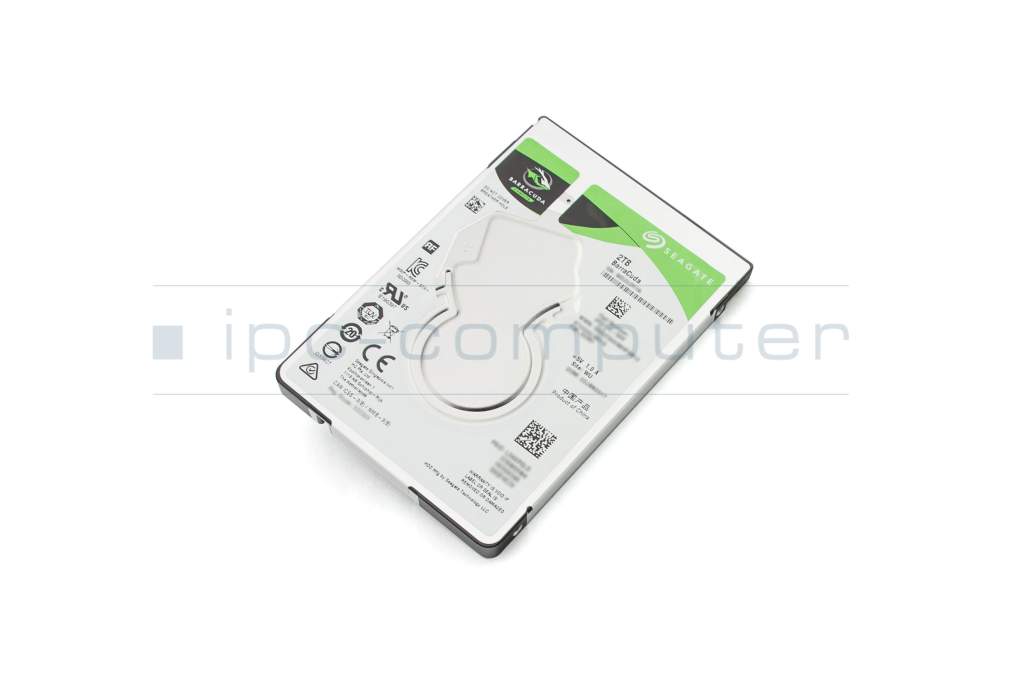

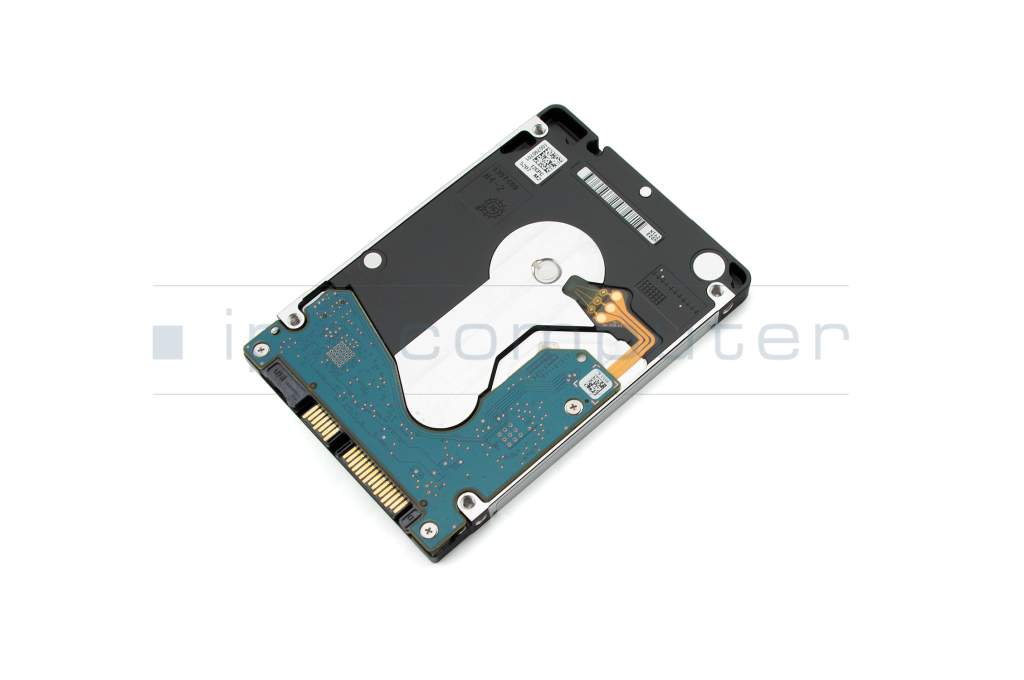

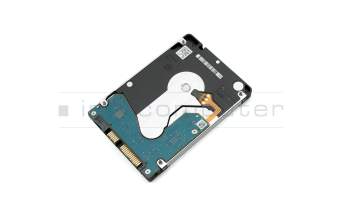

WD20SPZX-22UA7T0 Western Digital HDD 2TB

Manufacturer: Seagate
Substitute part number: WD20SPZX-22UA7T0
Sub-Partnumbers: 00HM754, 00HM755, 00LA958, 00PC559, 19201-41710100, 19201-41810000, 19201-41810100, 19201-41810200, 01LX012, 01LX013, 01LX024, CA08226-E978, 19200-41810000, 19200-41810100, 19200-41810200, 19200-41810500, 19201-41710000, 443066-112, 819636-001, 801808-005, 911791-800, 912487-850, 912487-855, 912487-857, 929167-850, CA07670-E778, CA07670-E818, CA08226-E778, CA08226-E818, CA08226-E852, FUJ:CA08226-E778, FUJ:CA08226-E818, FUJ:CA08226-E852, KH.02K01.011, KH.02K01.019, KH.02K01.024, KH.02K01.030, KH.02K01.037, 916848-001, FUJ:CA08226-E978, FUJ:CA07670-E778, FUJ:CA07670-E818, S26361-F3936-L200, S26361-F3955-L200, 00HM756, 38045385, 38045513, 38045784, 38045838, 38045941, 38046589, 38048235, 38049498, 38049501, 38049503, 38060085, P000673100, S26361-F3907-L200, S71-24A2504-S70, S71-24A2506-S70, S71-24A2507-W36, S71-24A2508-S70
Safety information: Sicherheits- & Herstellerkontakt-Informationen

This part number is a substitute with different specs.

Common data

Condition: New
Manufacturer: Seagate

Technical Data

Capacity (GB): 2000 GB
Interface: S-ATA III (6,0 Gb/s) HDD
Form factor: 2.5 inches / 6.4 cm
Height (mm): 7 mm
Cache (MB): 128 MB
Speed (rpm): 5400 rpm
Access time (ms): 5.6 ms
Special features: AES 256 bit encryption / Multi-Tier Caching Technology / Seagate SeaTools via download

Videos & Contributions

Notebook too slow? It's that easy to upgrade your notebook with an SSD

In this video we show an example of an SSD upgrade on an Asus Ultrabook.

Learn more >

Important and useful informations about laptop Hard Disk Drives

Frequently asked questions about Hard Disk Drives

Are the S-ATA standards compatible
Yes, the SATA standards are compatible to each other, however the slowest involved connection type will always be used. This means that connecting a SATA 6Gb/s SSD to a SATA 3Gb/s controller will severely limit its peak performance.
More information can be found in the FAQ “What is the difference between P-ATA (IDE), S-ATA, S-ATA II and S-ATA III?”
How can I format or partition a hard drive
You can use the disk management utility built into Windows 10.
1. Hit the Windows key and type "Control Panel", then hit enter
2. Left click on Administrative Tools
3. Select Computer Management and then Disk Management.
4. After a short loading time you will be shown all connected drive with their respective partitions.
5. Right click on the unformatted drive and click format.
6. Follow the wizard to complete the formatting process.
What hard drive can I install in my Notebook
You have to pay attention, that your hard drive uses the same connection type and form factor or height.
With the very common 2.5” hard drives you have to check whether your notebook still uses the old PATA standard or SATA and also you have to check what height is compatible since there are multiple heights. 7mm, 9mm and 15mm are the most common ones.
For SSDs there are also small form actors like mSATA or M.2. With the latter one you have to check if the slot supports the SATA and/or PCIe (NVMe) protocol.
The only thing that is not limited is the capacity and speed of your new drive.
What is the difference between P-ATA (IDE), S-ATA, S-ATA II and S-ATA III
The difference is in the type of connection and its speed.
- P-ATA/IDE (IDE 100/133) Parallel connection with transfer rates of up to 1 Gbit/s or 100 MB/s to 133 MB/s.
- S-ATA (SATA 150) Serial connection with transfer rates of up to 1.5 Gbit/s or 150 MB/s.
- S-ATA II (SATA 300) Serial connection with transfer rates of up to 3.0 Gbit/s or 300 MB/s.
- S-ATA III (SATA Revision 3.0) Serial connection with transfer rates of up to 6.0 Gbit/s or 600 MB/s.
