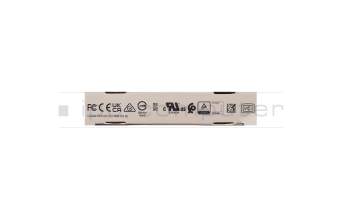

Western Digital SA510 WDS500G3BOB-00AXS0 SSD 500GB (M.2 22 x 80 mm)
TRANSCEND 825S TS1TMTS825S SSD 1TB (M.2 22 x 80 mm)
plus shipping charges
Product Info
- Manufacturer
- Western Digital
- Item Number
- WDS500G3BOB-00AXS0
- Primary Partnummer
- WDS500G3B0B-00AXS0
- Safety information
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
- Manufacturer
- Western Digital
Technical Data
- Capacity (GB)
- 500 GB
- Interface
- S-ATA III (6,0 Gb/s) SSD
- Form factor
- M.2 22 x 80 mm
- NAND
- 3D-NAND
- Random Read (IOPS)
- 90000
- Random Write (IOPS)
- 82000
- Sequential Read (MB/s)
- 560
- Sequential Write (MB/s)
- 510
Category
- Category
- Hard Disk Drives / HDD
- Usage
- Laptop
- Excerpt of suitable models for P/N WDS500G3BOB-00AXS0
- Asus ZenBook UX305LA , Panasonic Toughbook CF-54 , Lenovo ThinkPad T470s (20HF/20HG/20JS/20JT) , Fujitsu LifeBook E458 , Dell Inspiron 13 (7378) , Fujitsu Stylistic Q739 , Lenovo IdeaPad 3-17IML05 (81WC) , Asus ROG Zephyrus G14 GA401IV , Lenovo IdeaPad Flex 5-14ARE05 (82DF) , Gigabyte Aero 15 OLED YB
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
Videos & Contributions
What are the differences between M.2 SSDs?
There are a number of different M.2 SSDs. They differ in design, interfaces and installation. In this video we show the different variants.
Learn more >
New SSD? - How to move your data to your new SSD
This is how you can recognize a failure of your SSD at an early stage
Important and useful informations about laptop Hard Disk Drives
Frequently asked questions about Hard Disk Drives
- Are the S-ATA standards compatible
Yes, the SATA standards are compatible to each other, however the slowest involved connection type will always be used. This means that connecting a SATA 6Gb/s SSD to a SATA 3Gb/s controller will severely limit its peak performance.
More information can be found in the FAQ “What is the difference between P-ATA (IDE), S-ATA, S-ATA II and S-ATA III?”
- How can I format or partition a hard drive
You can use the disk management utility built into Windows 10.
- Hit the Windows key and type "Control Panel", then hit enter
- Left click on Administrative Tools
- Select Computer Management and then Disk Management.
- After a short loading time you will be shown all connected drive with their respective partitions.
- Right click on the unformatted drive and click format.
- Follow the wizard to complete the formatting process.
- What hard drive can I install in my Notebook
You have to pay attention, that your hard drive uses the same connection type and form factor or height.
With the very common 2.5” hard drives you have to check whether your notebook still uses the old PATA standard or SATA and also you have to check what height is compatible since there are multiple heights. 7mm, 9mm and 15mm are the most common ones.
For SSDs there are also small form actors like mSATA or M.2. With the latter one you have to check if the slot supports the SATA and/or PCIe (NVMe) protocol.
The only thing that is not limited is the capacity and speed of your new drive.
- What is the difference between P-ATA (IDE), S-ATA, S-ATA II and S-ATA III
The difference is in the type of connection and its speed.
- P-ATA/IDE (IDE 100/133) Parallel connection with transfer rates of up to 1 Gbit/s or 100 MB/s to 133 MB/s.
- S-ATA (SATA 150) Serial connection with transfer rates of up to 1.5 Gbit/s or 150 MB/s.
- S-ATA II (SATA 300) Serial connection with transfer rates of up to 3.0 Gbit/s or 300 MB/s.
- S-ATA III (SATA Revision 3.0) Serial connection with transfer rates of up to 6.0 Gbit/s or 600 MB/s.
All questions about Hard Disk Drives
