Honeywell 1962GHD-2USB-5-R Radio scanner

Honeywell 1962GHD-2USB-5-R wireless scanner

The Honeywell 1962GHD-2USB-5-R is a high-performance wireless 2D barcode scanner for retail, logistics, warehousing and industry. The high-density imager technology was specially developed for the reliable capture of small and high-resolution barcodes and is ideal for applications such as component tracking, electronics manufacturing, inventory and point-of-sale.

Thanks to Bluetooth 4.2 and multi-interface support, the scanner can be flexibly integrated into existing systems. The robust design with IP52 protection protects against dust and splash water and ensures reliable operation in daily use. The green target LED supports fast and precise barcode scanning.

Technical specifications

Electrical properties

• Input voltage: 4.4 - 5.5 V DC
• Battery type: Lithium-ion
• Battery capacity: 3,300 mAh
• Power consumption base station:

2.5 W (500 mA at 5 V DC) via standard USB
10 W (2 A at 5 V DC) when using a power supply unit

Environment

• Scanner protection class: IP52
• Protection class base station (CCB): IP41
• Operating temperature scanner: 0 °C to +50 °C
• Base station charging temperature: +5 °C to +35 °C
• Storage temperature: -40 °C to +70 °C
• Humidity: 0 to 95 % (non-condensing)
• Drop resistance: 50 drops from 1.8 m onto concrete
• Skid test: 2,000 impacts from 0.5 m

Hardware

• Scan technology: Area imager
• Alignment aid: Green Dot LED
• Wireless operation: Yes
• Interfaces: USB, RS232, Keyboard Wedge (KBW)
• Support for USB BC1.2 charging ports

Network

• Bluetooth 4.2
• 2.4 GHz wireless technology
• Adaptive Frequency Hopping (AFH)

Scanner features

• Scanner type: 1D/2D imager
• High Density (HD)
• Image sensor: 1280 × 1080 pixels
• Decoding: 1D, 2D, PDF417, OCR, Digimarc, DOT Code and other standards
• Motion tolerance: up to 4 m/s
• Ambient brightness: 0 to 100,000 lux
• Up to 80,000 scans per battery charge
• Print contrast: from 15

Dimensions
Scanner

• 108.2 × 70.4 × 160.2 mm
• Weight: 247 g

Presentation base

• 82.9 × 90.4 × 121.6 mm

Table/wall mount base

• 211.3 × 74.2 × 77.7 mm

Scope of delivery

• Honeywell 1962GHD wireless scanner
• Presentation charging/communication cradle

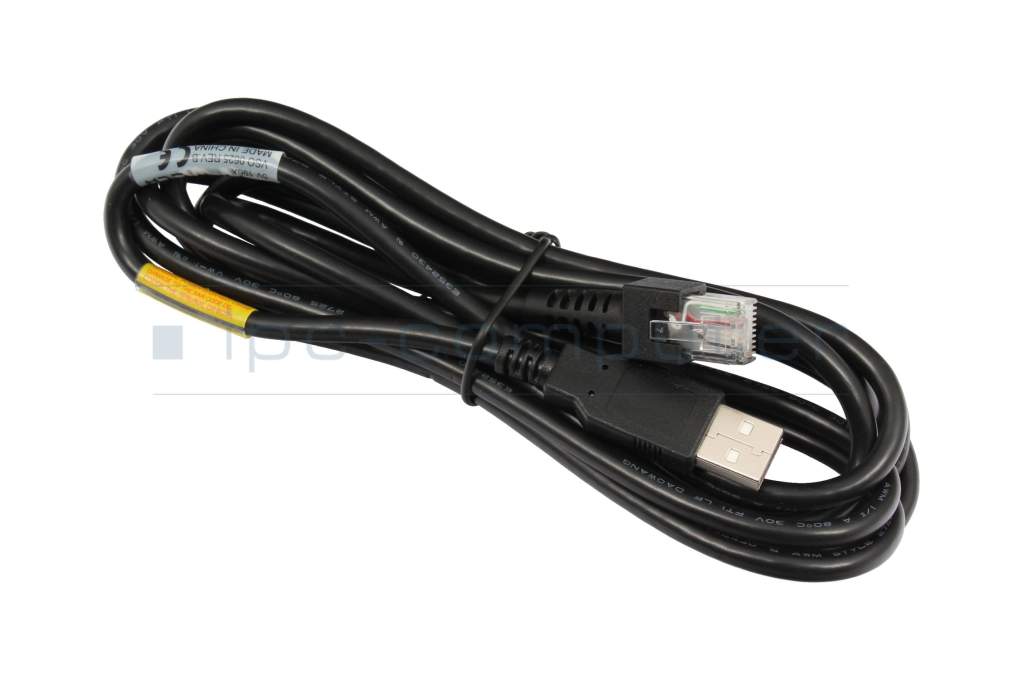

• USB cable, 2.7 m, straight, black
