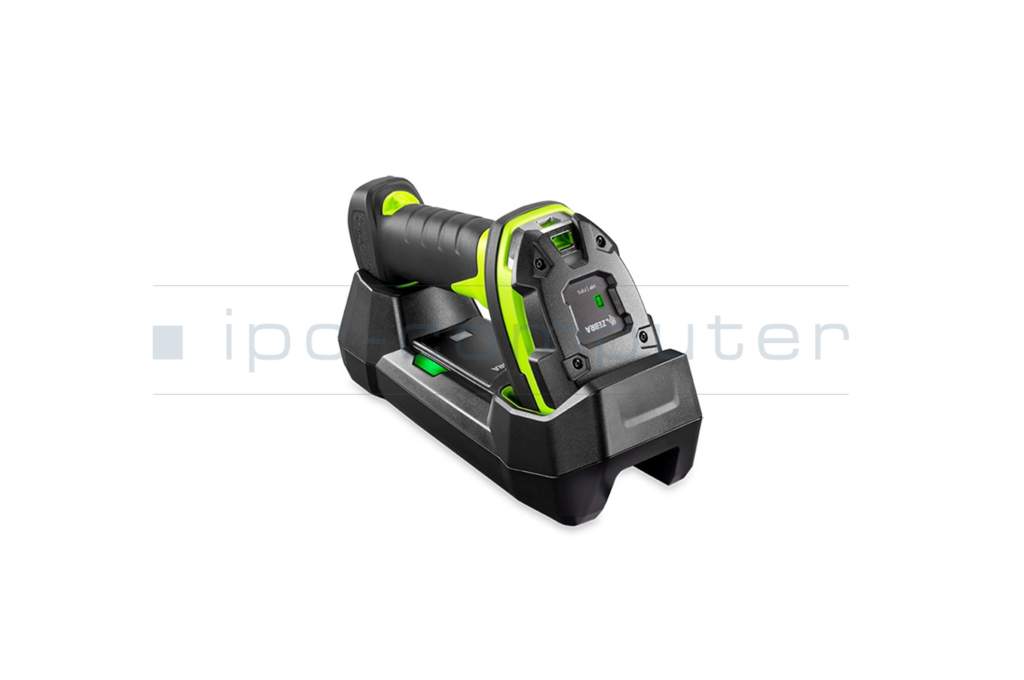

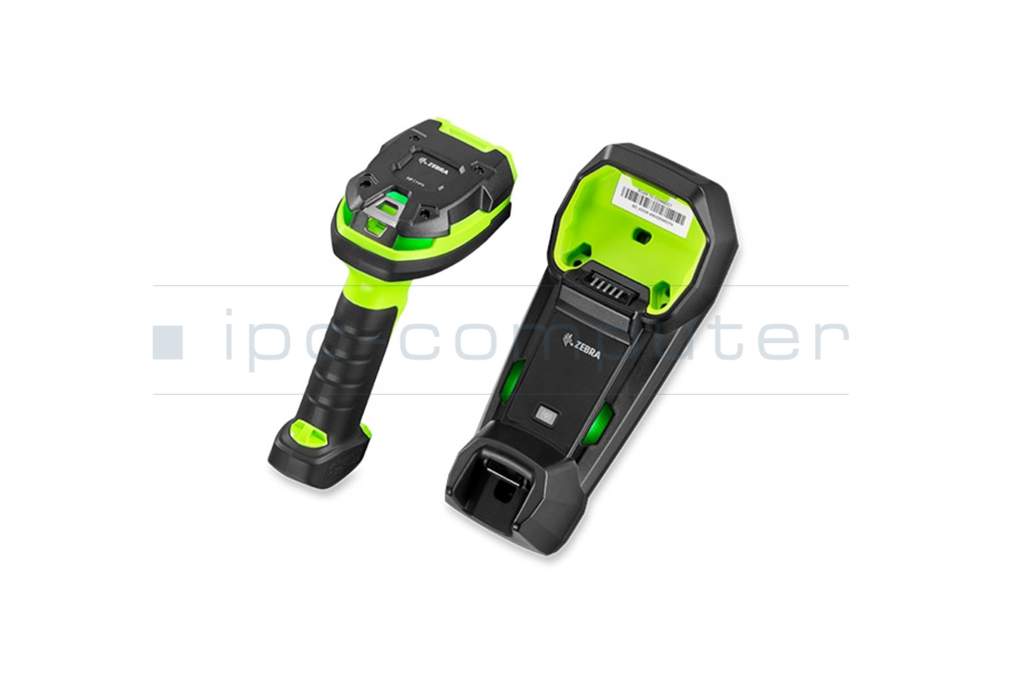

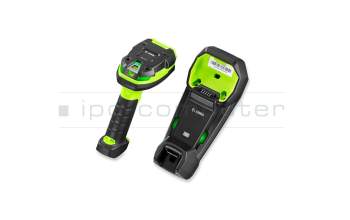

Zebra DS3678-SR Specifications

General features

• Model: Zebra DS3678-SR
• Scanning technology: 2D imager
• Range: Standard range (SR)
• Protection class: IP67 (dustproof and waterproof)
• Connectivity: Bluetooth
• Interfaces: Multi-interface (USB, RS232, keyboard wedge, etc.)

Physical features

• Dimensions:
• Height: approx. 185 mm
• Width: approx. 76 mm
• Depth: approx. 142 mm
• Weight: approx. 411 g

Performance and capabilities

• Scan pattern: Image capture of 2D barcodes
• Reading distance: From approx. 3.6 cm up to 74.9 cm (depending on barcode type and density)
• Operation with several scans per second possible
• Supported barcodes: 1D, 2D, Digimarc and OCR

Ambient conditions

• Operating temperature: -20 °C to 50 °C
• Storage temperature: -40 °C to 70 °C
• Humidity: 5% to 95%, non-condensing
• Drop resistance: Withstands drops from up to 2.4 meters (8 feet) onto concrete
• Sealed to IP67, protected against dust and water

Power supply

• Battery: Rechargeable lithium-ion battery
• Battery life: Up to 70. 000 scans per battery charge

Included accessories

• USB kit: Includes USB cable and charging cradle

Optional capabilities and features

• RFID reading (depending on model)
• Advanced decoding functions for special barcode symbologies
