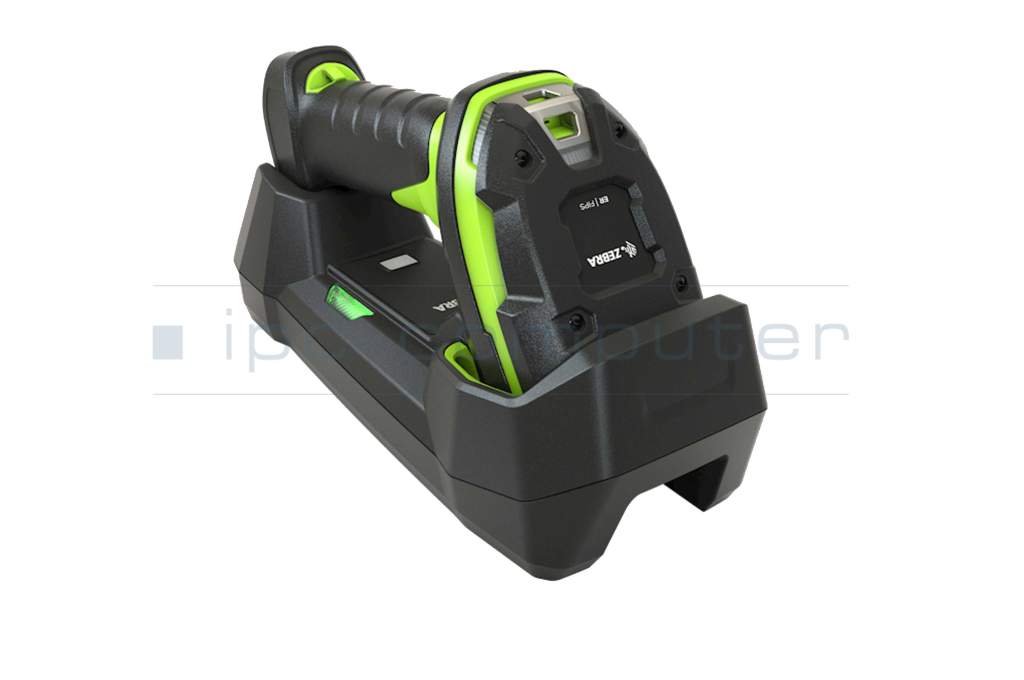

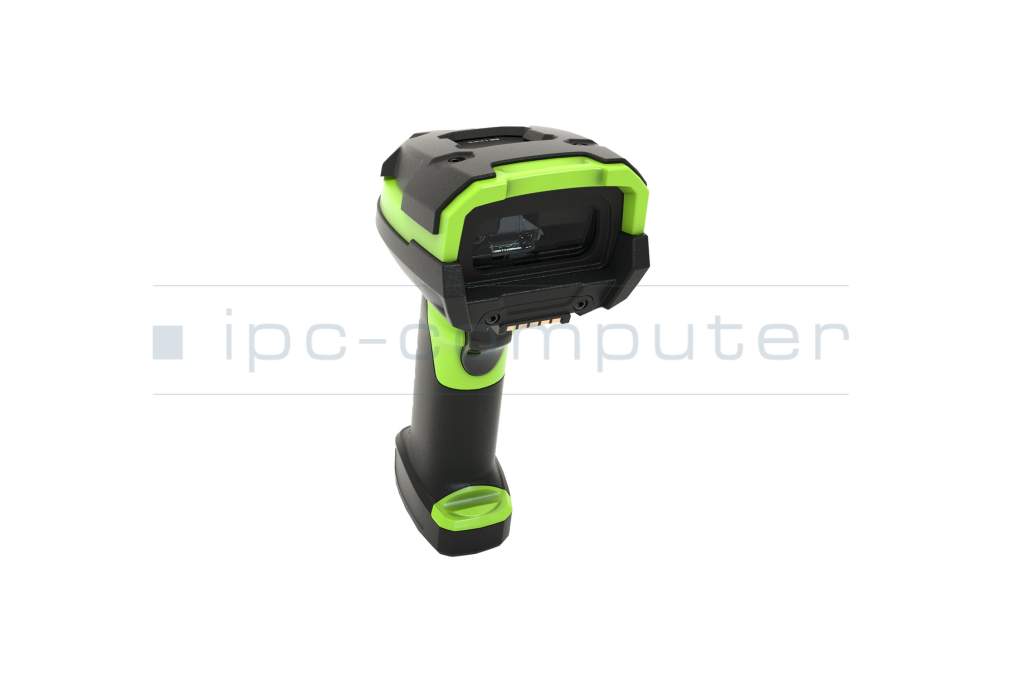

Zebra LI3678-SR Specifications

General Features

• Model: Zebra LI3678-SR
• Scan Technology: 1D Linear Imager
• Range: Standard Range (SR)
• Protection Class: IP67 (dust- and water-resistant)
• Connectivity: Bluetooth (wireless data transfer)
• Interfaces: Multi-interface (USB, RS232, keyboard wedge, etc.)

Physical Features

• Dimensions:
  • Height: approximately 18.5 cm
  • Width: approximately 7.6 cm
  • Depth: approximately 14.2 cm
• Weight: approx. 385 g

Performance and Capabilities

• Scan Pattern: Linear Imaging for 1D barcodes
• Reading distance: From close range up to 1.5 meters (depending on barcode type and density)
• Scan rate: 547 scans per second
• Supported barcodes: All common 1D barcodes such as UPC/EAN, Code 39, Code 128, etc.

Environmental Conditions

• Operating temperature: -20 °C to 50 °C
• Storage temperature: -40 °C to 70 °C
• Humidity: 5% to 95%, non-condensing
• Drop resistance: Withstands drops from a height of 2.4 meters (8 feet) onto concrete
• IP67-rated, providing protection against dust and water

Power Supply

• Battery: Rechargeable lithium-ion battery
• Battery life: Up to 56,000 scans per charge

Included Accessories

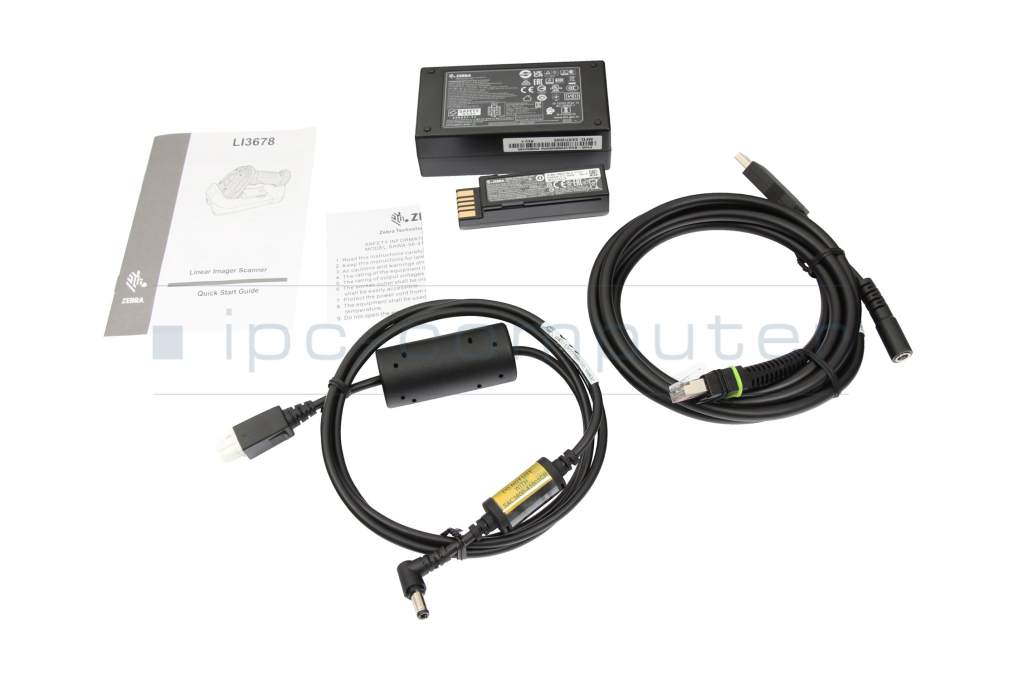

• USB Kit: Includes USB cable and charging station

Optional Capabilities and Features

• Additional decoding options for specialized barcode requirements
• Various configurations available for different use cases
