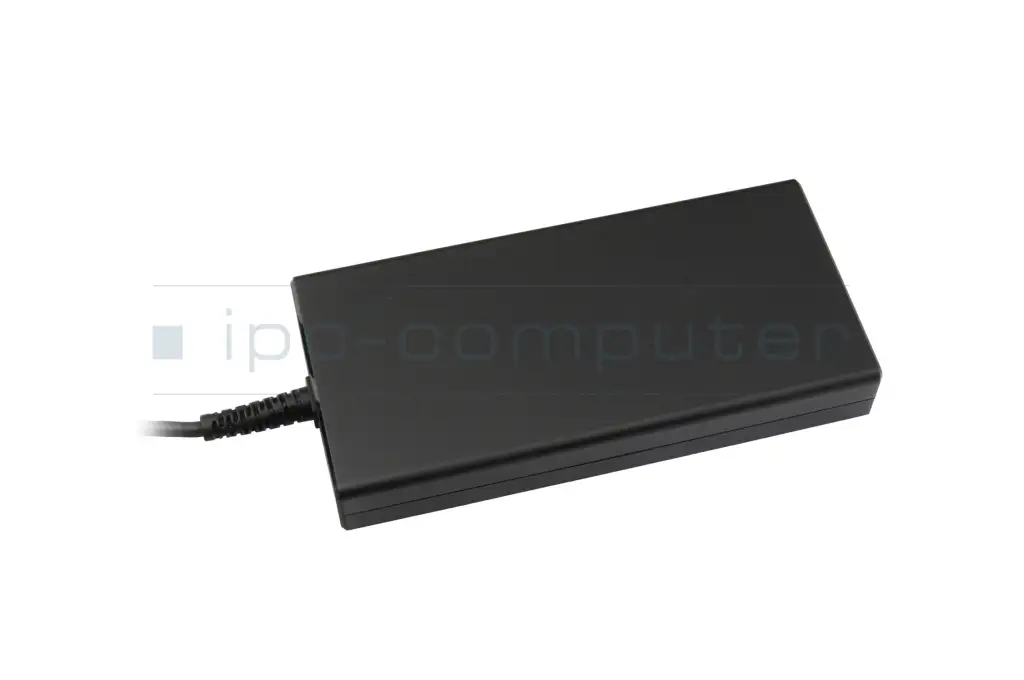

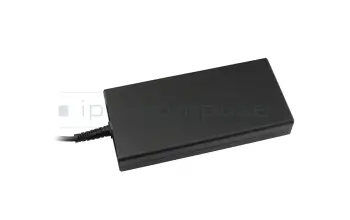

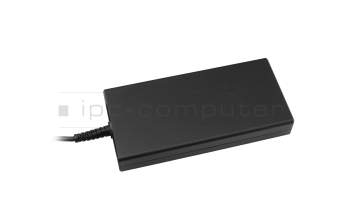

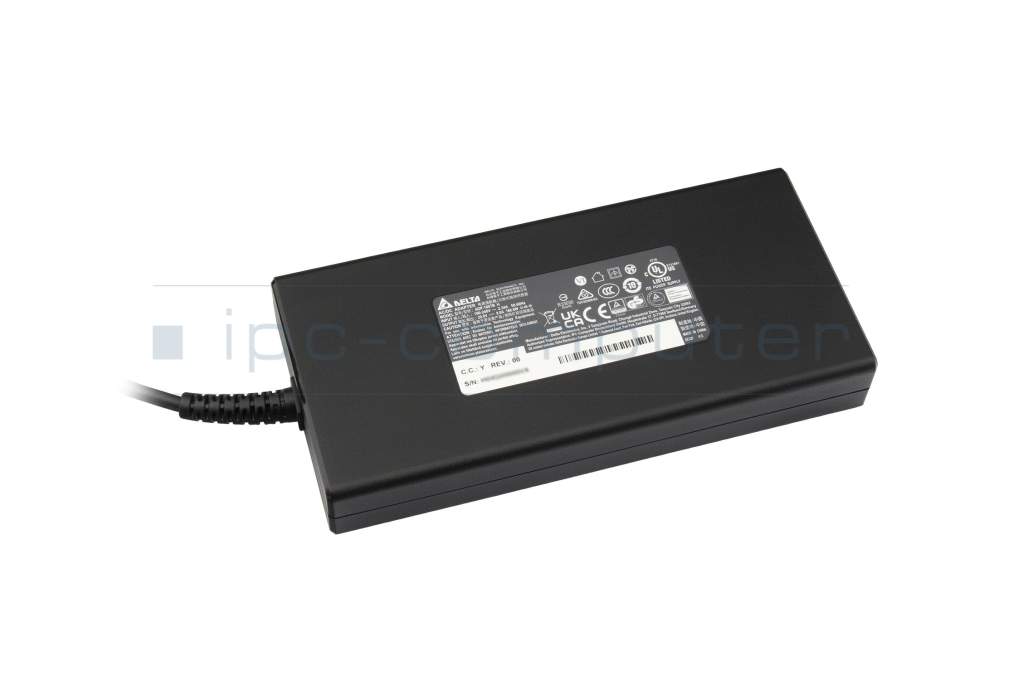

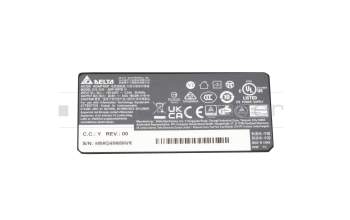

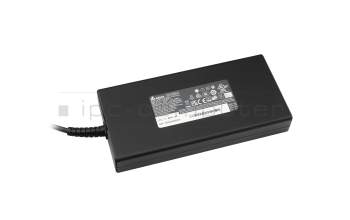

MSI GP62 8RC WOT (MS-16JF) AC-adapter 180.0 Watt slim from Delta Electronics (5.5/2.5)
Common data
- Condition
- New
- Manufacturer
- Original directly from Delta Electronics
- Intended use
- Laptops
- Color
- black
- Design
- slim
- Delivery includes
- incl. power cable (3-pole cable C5)

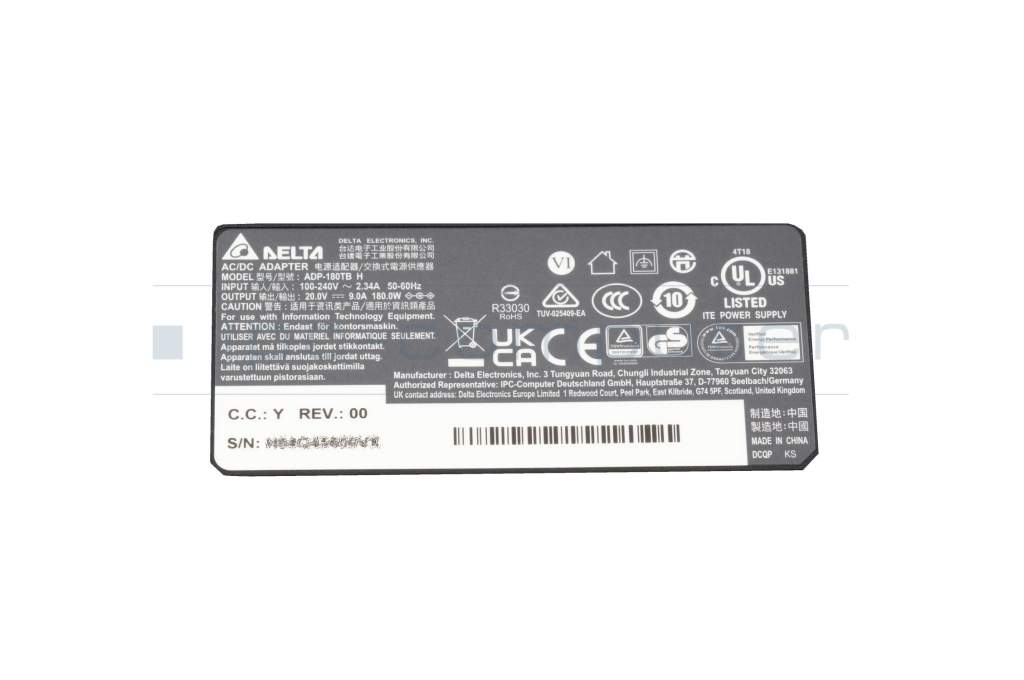

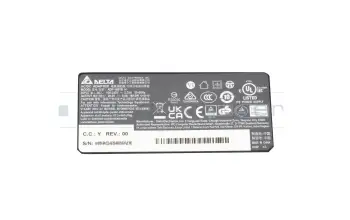

Technical Data
- Tension (volt)
- 20 Volt
- Amperage (ampere)
- 9.0 Ampere
- Output (watt)
- 180.0 Watt
- Input (volt)
- 100-240V / 50-60Hz
- Energy efficiency
- VI

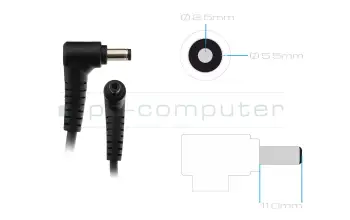

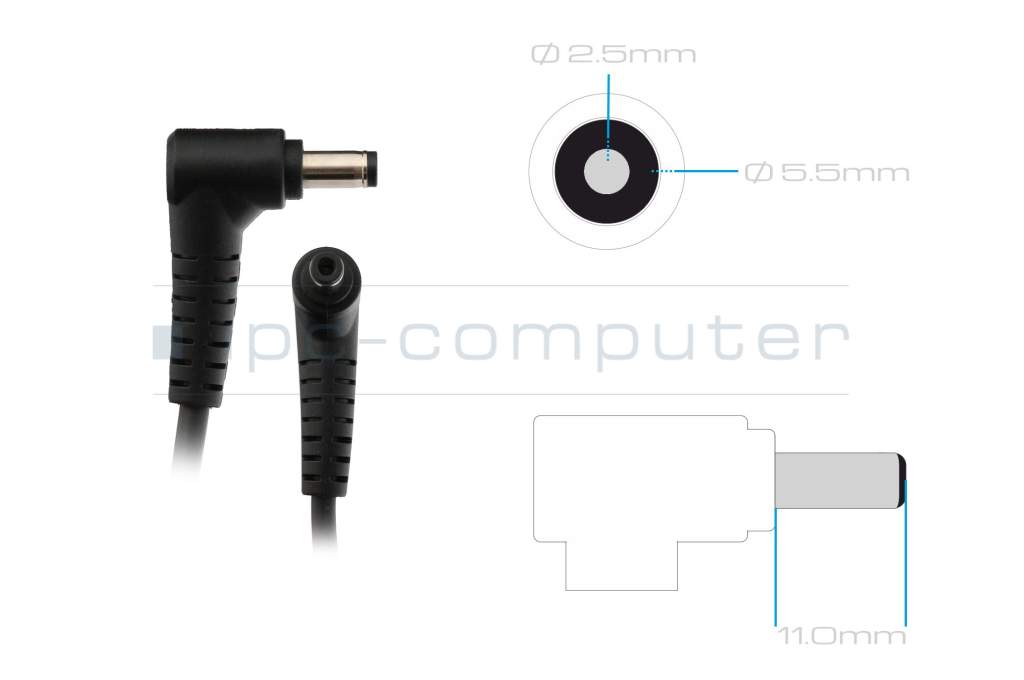

Laptop Plug
- Connector type / shape
- round / 90° angeld
- Connector length (mm)
- 11.0 mm
- Connector diameter outer / inner
- 5.5 mm / 2.5 mm
- Connector with pin
- No
- Length of the connector cable (m) (ca.)
- 1.75 m
Weight & Meassurements
- Length / Width / Hight
- 150 mm / 75 mm / 23 mm
More Information
- Overload-, short-circuit- and overheat-protected
- yes
- Seal of approval
-
CCC
CE
Technical Inspection Association (TÜV)
UKCA
UL Listed
Are you looking for a high-quality and affordable replacement power supply for your laptop? Rely on the quality and reliability of the world market leader – choose power supplies from DELTA!
Trust: Delta Electronics has been a leading global manufacturer of power supply solutions for many years.
Affordable Price: By sourcing directly from the manufacturer DELTA, we can pass the price advantage on to you.
Compatibility: All major laptop manufacturers also have their power supplies manufactured by DELTA Electronics, ensuring 100% compatibility.
Quality: The manufacturer DELTA has stood for the best quality and product safety for decades.
Warranty: 24 months IPC-Computer warranty on all DELTA power supplies distributed by IPC-Computer.
Safety: All current necessary safety standards are 100% met.
Energy Efficiency: Thanks to high energy efficiency, the Delta power supply saves electricity and thus protects both the environment and your wallet.
- ACER Z series, div. ACER Travelmate and Aspire models and many more
- ASUS AIO PC systems, EEE-Top series, G20, G21, G53, G71, G72, G73, G74, G750, G751, G752 and many more
- Clevo V15x, V175x, NH7xx, W87x, W97x, N87x, NH57x, NP50, N97x and many more
- Gigabyte: G5, G7, Aero 150x, P35 and manymore
- HP Pavillion ZX5000 and many more
- Medion Erazer, X7817, X6817, X7815, X7820, X7829, X7813, X7819, X6821, X7827, X7831, X7835, X7821 and many more
- MSI GT70, GT68, X6811, GT60, GS73, GT680, WT60, WT70, Bravo 15, Bravo 17, CR61, CR700 and many more.
- Schenker: XMG Focus, XGM-Core, XGM-Pro, Key-15, Media 15, Media 17, Vision 16
- Tomfang: GK7CP6R, GK5CP6V, GM7MG0R, GM7NG0R, PH6AQ71, GK5CP0Z, GM5NG0O, GM6BGEQ, GM7PG0M, GM7PG3
Category
- Category
- AC-Adaptor
- Usage
- Laptop
Videos & Contributions
New notebook power supplies in various designs
Important and useful informations about laptop AC adapters
Frequently asked questions about AC adapters
- Can I use my old power supply for my new Notebook
Whether you can continue using your old power supply depends on three factors.
- Is the plug identical to the one of your old Notebook?
- Is the wattage greater or equal then the one of the old power supply?
- The Voltage has to be the same, however a tolerance of +/- 1 Volt is acceptable.
- How do I find out how what the output power (watts) of my power supply is
All the necessary information to calculate it can be found on the back of the power supply. To calculate the output power of the unit, use the specifications listed under "output".
Calculation:
Ampere * Volt = Watt
Example: 4,74 A * 19 V = 90,06 W
The power supply therefor has 90 Watt.
- I have a 65 watt power supply, can I also use one with 90 watt?
Yes, you can use a power supply with a higher wattage, however you need to pay attention that the voltage doesn't deviate more than one volt from the voltage of the original power supply.
It also doesn't work the other way around; your new power supply needs to have at least the same wattage as the old one.
- I would like to use my Laptop in my car, what kind of power supply do I need?
To use your laptop in a vehicle you need a car-adapter, which converts the 12 Volt your car provides to 19 Volt most Laptops need.
If there is no car-adapter, that is compatible to your notebook, you can use an inverter which generates mains power from the power, supplied by the car. You can then plug your normal power supply into it.
- My laptop battery is no longer charging, is my charger broken?
Not necessarily, try taking your battery out (if possible) and starting the computer while connected to the charger in question. If it starts, the power supply is working but something in the Notebook is broken.
There are also multiple indicator lights, on the laptop, whether it is being charged, also this can be seen in most operating systems. You can also use the indicator light found on some chargers to diagnose an issue with a cable.
- My power supply is getting pretty hot, is that normal?
Power supplies are subject to certain specifications and can reach up to 50°C. The most amount of heat is produced when working on the Notebook and charging the battery at the same time. As long as you can touch your charger without getting burnt, its temperature is probably within specification. However, it is most important, that the heat can be dissipated, therefor you should never put your power supply under a blanket or in a closed drawer.
- Will my battery charge faster with a power supply that has a higher wattage?
No, because a circuit in the Notebook controls how much power arrives at the battery and not the charger.
