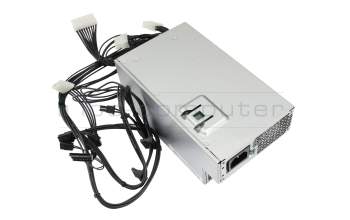

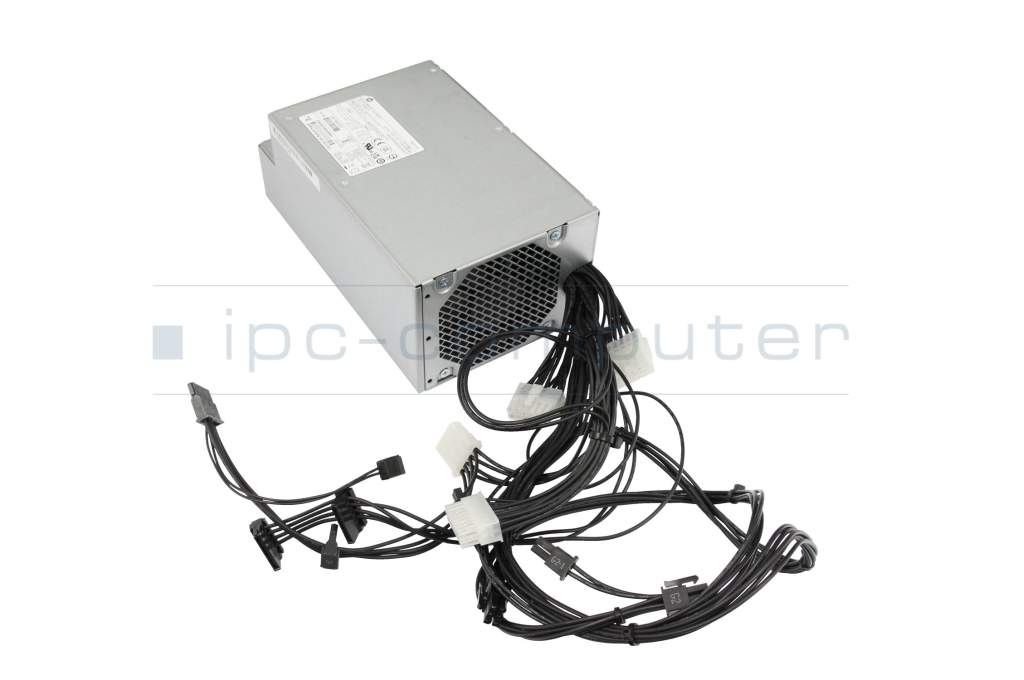

L20514-001 original HP Desktop-PC power supply 1000 Watt
- Manufacturer
- HP
- Item Number
- L20514-001
- Primary Partnummer
- L20514-001
- Safety information
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
- Use
- Desktop-PC
Technical Data
- Output power
- 1000 Watt
- Connections
-
1x 10 Pin
1x 12 Pin
1x 18 Pin
1x PATA - 4 Pin
1x mini SATA
2x 6+2 Pin
4x SATA - Output voltage
- 12
- Fan
- Yes
- Power supply
- 3-pole EU IT-IEC connector

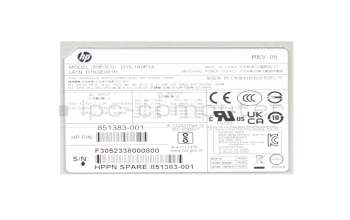

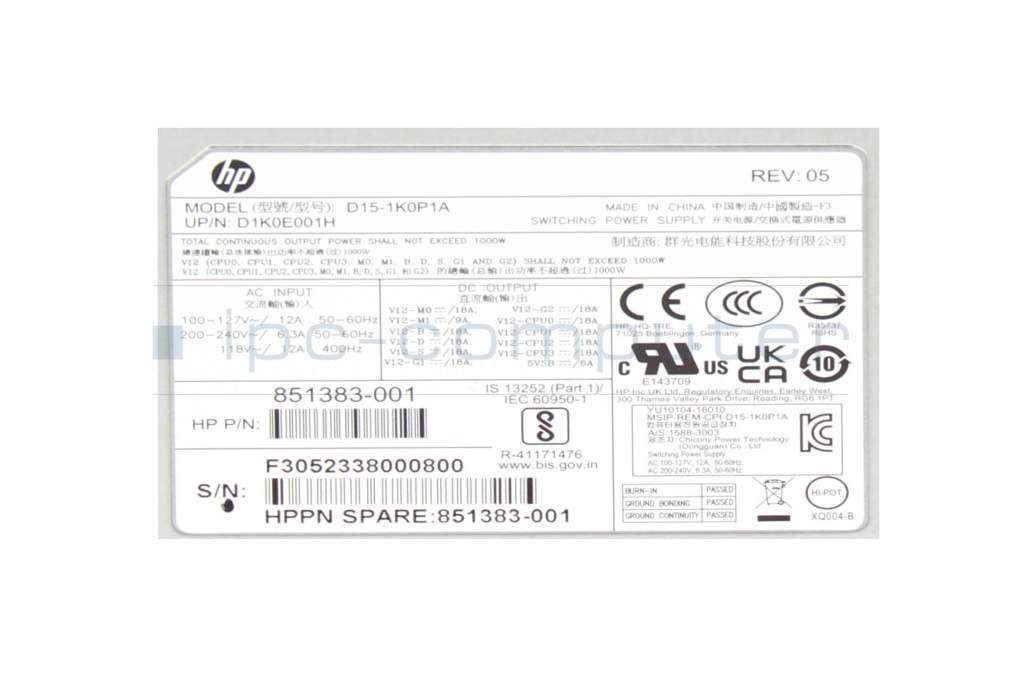

HP 851383-001 - 1000W Power Supply for HP WorkStation Z4 Z6 G4
MAX. OUTPUT POWER: 1000W
AC INPUT
100-127V~/ 12A 50/60Hz
200-240V~/ 6.3A 50-60Hz
118~/ 12A 400Hz
DC OUTPUT
V12-M0=/18A, V12-G2=/18A
V12-M1=/9A, V12-CPU0=/18A
V12-B=/18A, V12-CPU1=/18A
V12-D=/18A, V12-CPU2=/18A
V12-S=/18A, V12 CPU3=/18A
V12-G1=/18A, 5VSB=/6A
Dimensions
120mm x 86mm x 214mm
Connectors
(1) 18-Pin Connector (P1) 8.25")
(1) 12-Pin Connector (P2) (2.75")
(1) 12-Pin Connector Female (R1) (2.25")
(1) Ide Connector (D5) (9") Same Cable As Dual Sata / Mini Sata
(4) Sata Connector (D4 13.25") & (D3 17") On Same Cable As Mini Sata And Ide (D0 22") & (D1 24") On Same Cable
(2) 6+2 Pin Connector (G1 28") (G2 28")
Category
- Category
- Internal power supplies
- Excerpt of suitable models for P/N L20514-001
- HP Z8 G4 Workstation , HP Z4 G4 Workstation , HP Z6 G4 Workstation , HP Z8 G4 Workstation
