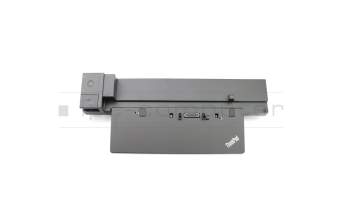

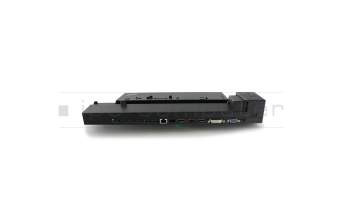

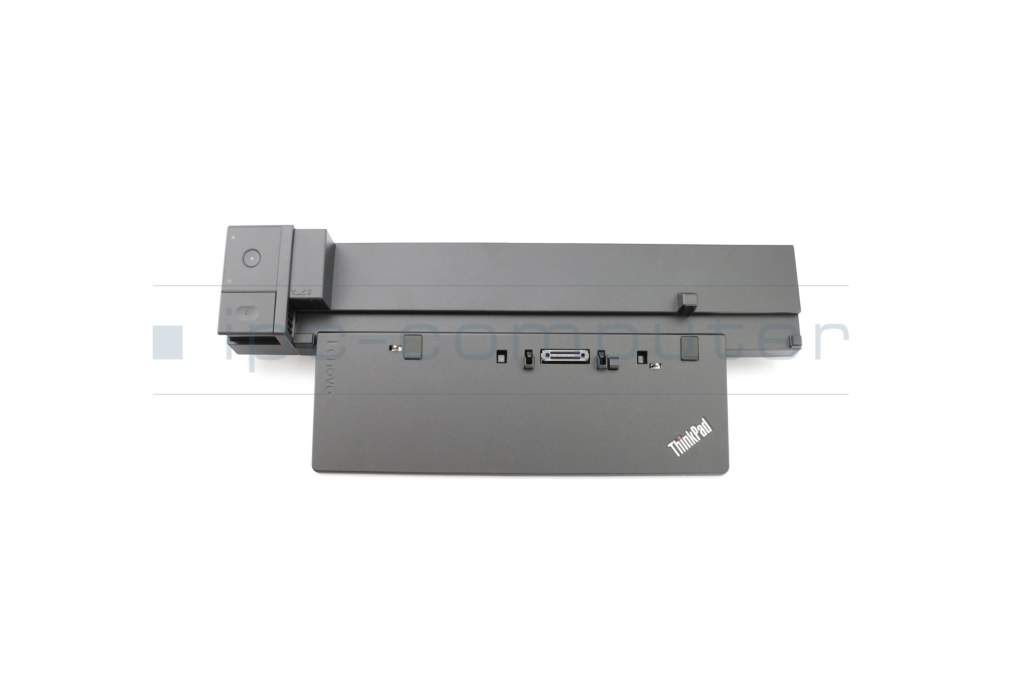

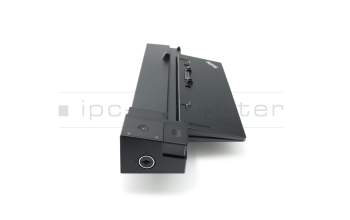

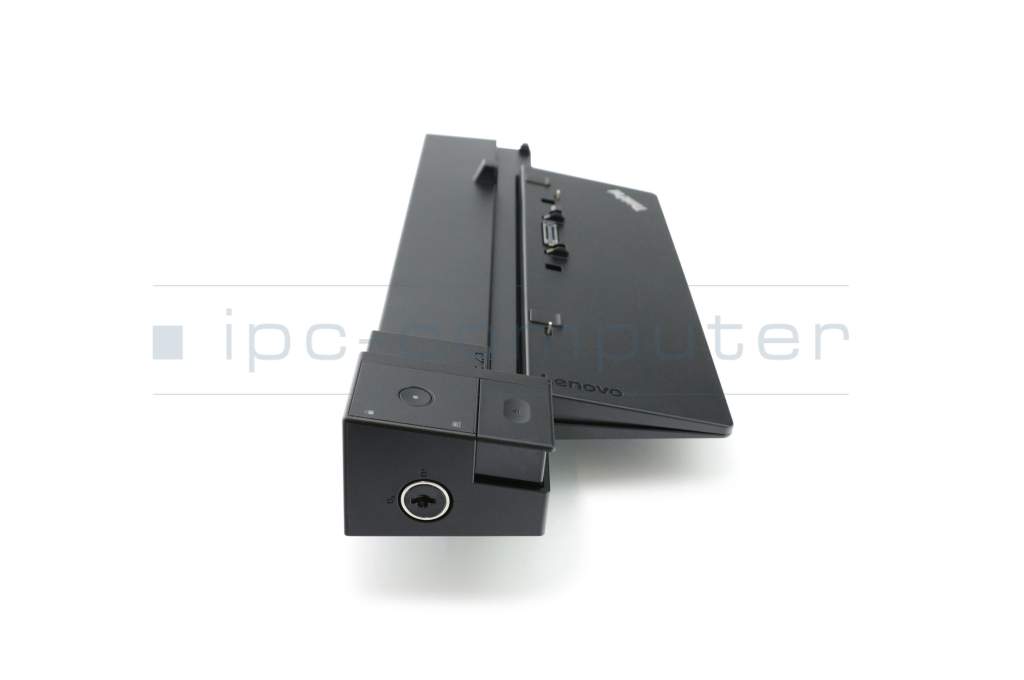

Lenovo ThinkPad P71 (20HK/20HL) Workstation Docking Station incl. 230W Netzteil

EOL

Out of stockThis article is EOL (End of Life) and not longer available.What does EOL mean?

Unfortunately there are no alternative products.

Cannot be used together with high-performance batteries! The Workstation Dock supports video output with a resolution of up to 3,840 x 2,160 (4K2K) at 60 Hz via one of the two DisplayPort outputs or 3,840 x 2,160 at 30 Hz via both outputs. As the dock receives the video signal from the system, the actual output performance of the workstation dock depends on the video performance of the system. Some of the video ports are intended for exclusive use, so they cannot be used simultaneously and also depend on the configuration of the docked system.

Product note

This product is EOL (End of Life)

Common data

Condition: New

Technical Data

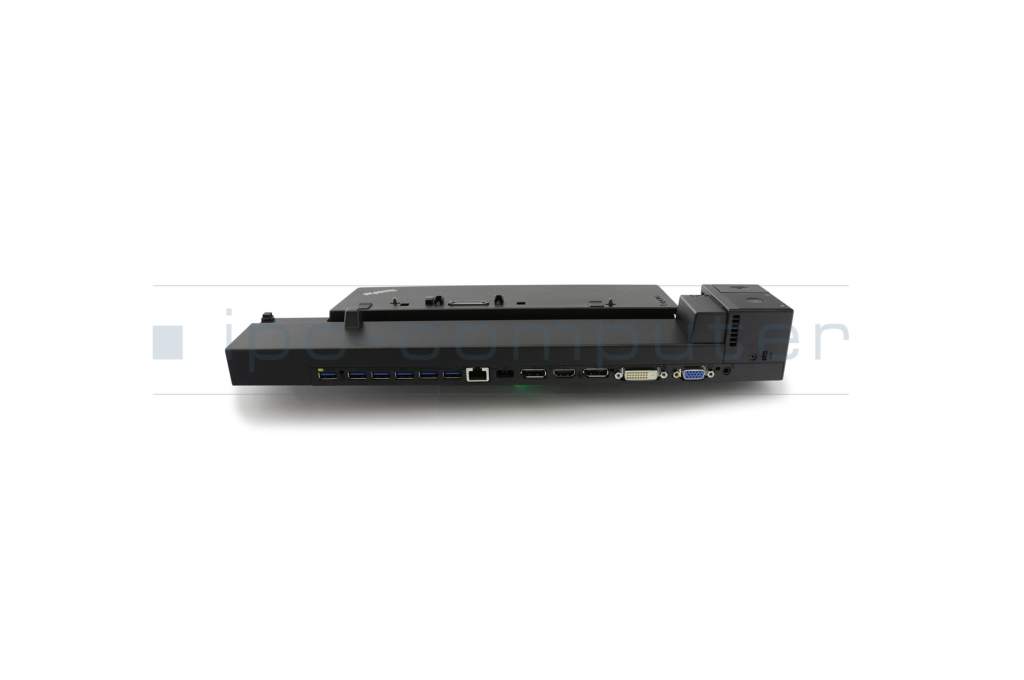

Connexion to the laptop: Internal docking port
Connectors: 1x Audio-Combo
1x DC-In (Power supply)
1x DVI
1x Ethernet (RJ-45)
1x HDMI
1x Kensington-Lock
1x USB-A 3.0 SS (Super Speed USB)
1x VGA
2x DisplayPort
5x USB-A 3.0
Max. resolution of external monitors: 2x 4K2K - 4096x2160
3x WUXGA - 1920x1200

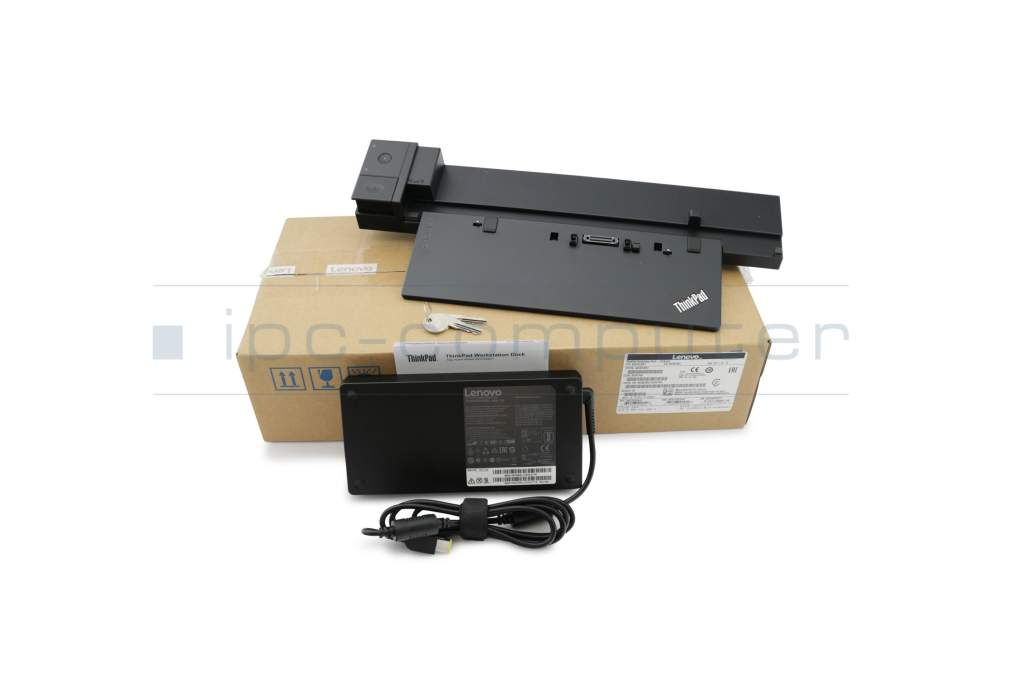

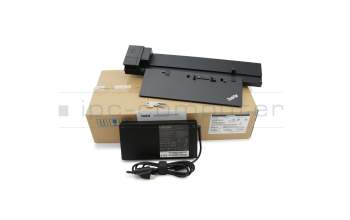

Delivery includes: 2x keys for security lock
Docking Station
Documentation
Power cable
Included ac-adaptor: 230W
Compatible operating systems: Windows 10 (32bit/64bit)
Windows 7 (32bit/64bit)
Windows 8 (32bit/64bit)
Windows 8.1 (32bit/64bit)
Length / Width / Hight: 0 cm / 16.5 cm / 5 cm
